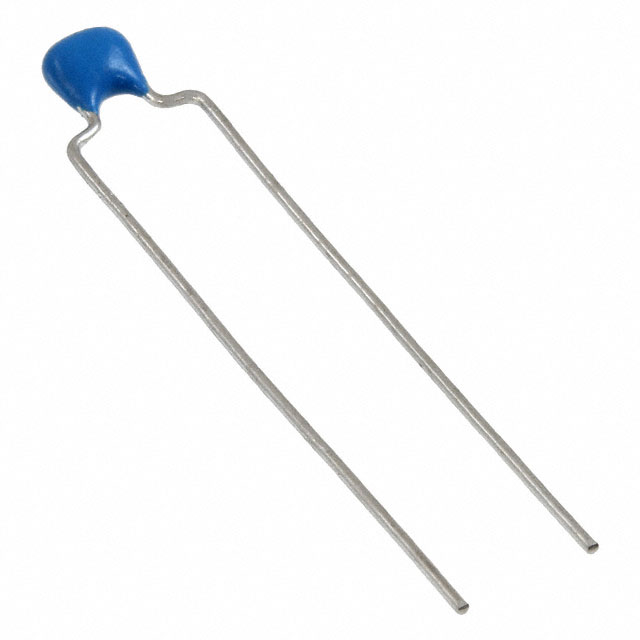

RDER71H154K1M1H03A

Active

Murata Power Solutions Inc.

CAP CER 0.15UF 50V X7R RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRDE Series Summary Datasheet

RDER71H154K1M1H03A

Active

Murata Power Solutions Inc.

CAP CER 0.15UF 50V X7R RADIAL

Deep-Dive with AI

DocumentsRDE Series Summary Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RDER71H154K1M1H03A

Applications	General Purpose
Capacitance	0.15 ÁF
Height - Seated (Max) [Max] [z]	0.197 in
Height - Seated (Max) [Max] [z]	5 mm
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lead Style	Formed Leads - Kinked
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	4.5 mm
Size / Dimension [x]	0.177 in
Size / Dimension [y]	0.124 "
Size / Dimension [y]	3.15 mm
Temperature Coefficient	X7R
Tolerance	10 %
Voltage - Rated	50 VDC

RDER71H Series

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Lead Spacing	Lead Spacing	Temperature Coefficient	Tolerance	Voltage - Rated	Lead Style	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Murata Power Solutions Inc. RDER71H332K0P1H03B	0.157 "	0.098 in	4 mm	2.5 mm	3300 pF	0.098 in	2.5 mm	X7R	10 %	50 VDC	Formed Leads	Radial	-55 °C	125 °C	0.236 in	6 mm	General Purpose	Through Hole
Murata Power Solutions Inc. RDER71H222K0K1H03B	0.157 "	0.098 in	4 mm	2.5 mm	2200 pF	0.197 in	5 mm	X7R	10 %	50 VDC	Formed Leads - Kinked	Radial	-55 °C	125 °C	0.236 in	6 mm	General Purpose	Through Hole
Murata Power Solutions Inc. RDER71H683K0S1H03A	0.157 "	0.098 in	4 mm	2.5 mm	0.068 µF	0.098 in	2.5 mm	X7R	10 %	50 VDC	Formed Leads	Radial	-55 °C	125 °C	0.236 in	6 mm	General Purpose	Through Hole
Murata Power Solutions Inc. RDER71H473K0K1H03B	0.157 "	0.098 in	4 mm	2.5 mm		0.197 in	5 mm	X7R	10 %	50 VDC	Formed Leads - Kinked	Radial	-55 °C	125 °C	0.236 in	6 mm	General Purpose	Through Hole
Murata Power Solutions Inc. RDER71H154K1K1C03B	0.177 in	0.124 "	4.5 mm	3.15 mm	0.15 ÁF	0.197 in	5 mm	X7R	10 %	50 VDC	Formed Leads	Radial	-55 °C	125 °C			General Purpose	Through Hole	0.197 in	5 mm
Murata Power Solutions Inc. RDER71H222K0P1H03B	0.197 in	0.098 in	5 mm	2.5 mm	2200 pF	0.098 in	2.5 mm	X7R	10 %	50 VDC	Formed Leads	Radial	-55 °C	125 °C	0.236 in	6 mm	General Purpose	Through Hole
Murata Power Solutions Inc. RDER71H223K0M1H03A	0.157 "	0.098 in	4 mm	2.5 mm	0.022 µF	0.197 in	5 mm	X7R	10 %	50 VDC	Formed Leads - Kinked	Radial	-55 °C	125 °C	0.236 in	6 mm	General Purpose	Through Hole
Murata Power Solutions Inc. RDER71H154K1M1H03A	0.177 in	0.124 "	4.5 mm	3.15 mm	0.15 ÁF	0.197 in	5 mm	X7R	10 %	50 VDC	Formed Leads - Kinked	Radial	-55 °C	125 °C			General Purpose	Through Hole	0.197 in	5 mm
Murata Power Solutions Inc. RDER71H224K1K1H03B	0.177 in	0.124 "	4.5 mm	3.15 mm	0.22 µF	0.197 in	5 mm	X7R	10 %	50 VDC	Formed Leads - Kinked	Radial	-55 °C	125 °C			General Purpose	Through Hole	0.197 in	5 mm
Murata Power Solutions Inc. RDER71H221K0K1C03B	0.157 "	0.098 in	4 mm	2.5 mm	220 pF	0.197 in	5 mm	X7R	10 %	50 VDC	Formed Leads	Radial	-55 °C	125 °C	0.236 in	6 mm	General Purpose	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.56
		10	$ 0.37
		50	$ 0.30
		100	$ 0.25
		500	$ 0.19
		1000	$ 0.16
	Tape & Box (TB)	2000	$ 0.15
		4000	$ 0.14
		10000	$ 0.13
		14000	$ 0.13
		50000	$ 0.12

Description

General part information

RDER71H Series

0.15 µF ±10% 50V Ceramic Capacitor X7R Radial
