245656040010829+T

Active

Kyocera AVX

5656 SERIES, FLOXY, 0.5MM PITCH,

Search across all available documentation for this part.

Active

Kyocera AVX

5656 SERIES, FLOXY, 0.5MM PITCH,

Technical Specifications

Parameters and characteristics for this part

Specification	245656040010829+T

Connector Type	Floating, Receptacle
Features	Solder Retention, Board Guide
Height Above Board [z]	14 mm
Height Above Board [z]	0.551 "
Mated Stacking Heights	18 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Pitch [x]	Pitch [x]	Number of Rows	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Features	Connector Type	Number of Positions	Mounting Type	Height Above Board	Height Above Board	Contact Finish	Mated Stacking Heights [z]
Kyocera AVX 245656040010829+T	0.5 mm	0.02 in	2	14 mm	0.551 "	18 mm	Board Guide Solder Retention	Floating Receptacle	40	Surface Mount
Kyocera AVX 245656060009829+T	0.5 mm	0.02 in	2				Board Guide Solder Retention	Floating Receptacle	60	Surface Mount	0.508 in	12.91 mm	Gold	17 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

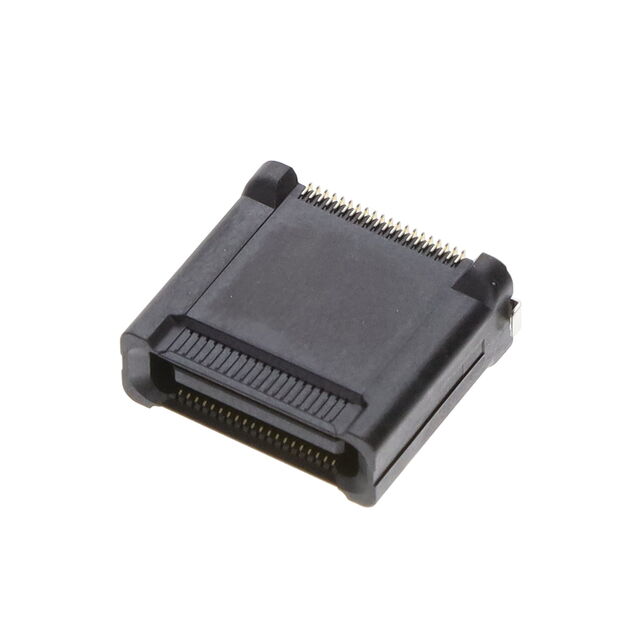

40 Position Connector Receptacle, Floating Surface Mount
