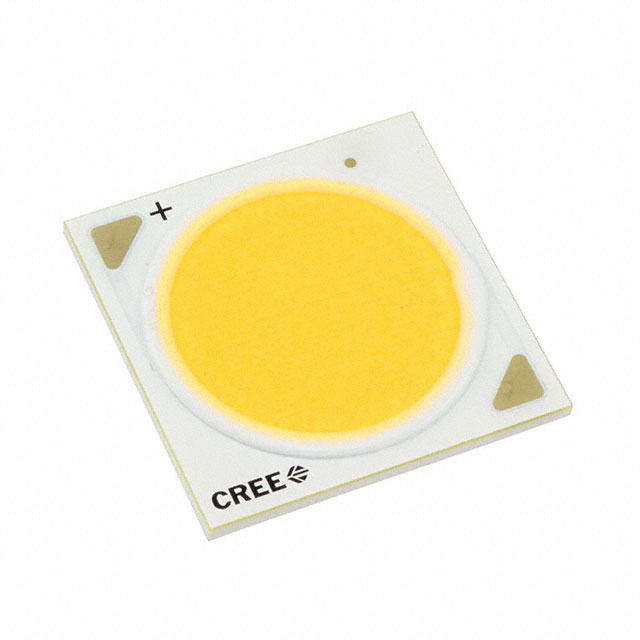

CXB3590-0000-000N0BDB65E

Active

Cree LED

LED COB XLAMP COOL WHT SQU 6500K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CXB3590-0000-000N0BDB65E

Active

Cree LED

LED COB XLAMP COOL WHT SQU 6500K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CXB3590-0000-000N0BDB65E

CCT (K)	6500 K
Color	Cool, White
Configuration	Square
Current - Max [Max]	3.6 A
Current - Test	2.4 A
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	30 mm
Lumens/Watt @ Current - Test	156 lm/W
Luminous Flux @ Current/Temperature	13500 lm
Luminous Flux @ Current/Temperature [Max]	14000 lm
Luminous Flux @ Current/Temperature [Min]	13000 lm
Size / Dimension [x]	34.85 mm
Size / Dimension [y]	34.85 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	36 V

CXB3590 Series

...

Part	Temperature - Test	CCT (K)	Viewing Angle	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ)	Color	Lens Type	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Type	Configuration	Current - Max [Max]	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Lumens/Watt @ Current - Test
Cree LED CXB3590-0000-00PN0Z0A30H	85 °C	3000 K	115 °	30 mm	36 V	Warm White	Flat	2.4 A	34.85 mm	34.85 mm	1.7 mm	Chip On Board (COB)	Square	3.6 A
Cree LED CXB3590-0000-00PN0U0A30G	85 °C	3000 K	115 °	30 mm	36 V	Warm White	Flat	2.4 A	34.85 mm	34.85 mm	1.7 mm	Chip On Board (COB)	Square	3.6 A	90
Cree LED CXB3590-0000-00PR0Z0A35H	85 °C	3500 K	115 °	30 mm	72 V	Warm White	Flat	1.2 A	34.85 mm	34.85 mm	1.7 mm	Chip On Board (COB)	Square	1.8 A
Cree LED CXB3590-0000-000N0HCD40G	85 °C	4000 K	115 °	30 mm	36 V	Neutral White	Flat	2.4 A	34.85 mm	34.85 mm	1.7 mm	Chip On Board (COB)	Square	3.6 A	80	12500 lm	12000 lm	13000 lm	145 lm/W
Cree LED CXB3590-0000-000R0HCD35G	85 °C	3500 K	115 °	30 mm	72 V	Warm White	Flat	1.2 A	34.85 mm	34.85 mm	1.7 mm	Chip On Board (COB)	Square	1.8 A	80	12500 lm	12000 lm	13000 lm	145 lm/W
Cree LED CXB3590-0000-000N0BDB65E	85 °C	6500 K	115 °	30 mm	36 V	Cool White	Flat	2.4 A	34.85 mm	34.85 mm	1.7 mm	Chip On Board (COB)	Square	3.6 A		13500 lm	13000 lm	14000 lm	156 lm/W
Cree LED CXB3590-0000-000R0UCB35H	85 °C	3500 K	115 °	30 mm	72 V	Warm White	Flat	1.2 A	34.85 mm	34.85 mm	1.7 mm	Chip On Board (COB)	Square	1.8 A	90	11500 lm			133 lm/W
Cree LED CXB3590-0000-00PN0U0A27H	85 °C	2700 K	115 °	30 mm	36 V	Warm White	Flat	2.4 A	34.85 mm	34.85 mm	1.7 mm	Chip On Board (COB)	Square	3.6 A	90
Cree LED CXB3590-0000-000N0HCB50G	85 °C		115 °	30 mm	36 V	Cool White	Flat	2.4 A	34.85 mm	34.85 mm	1.7 mm	Chip On Board (COB)	Square	3.6 A	80	11500 lm			133 lm/W
Cree LED CXB3590-0000-00PN0U0A31Q	85 °C		115 °	30 mm	36 V	White	Flat	2.4 A	34.85 mm	34.85 mm	1.7 mm	Chip On Board (COB)	Square	3.6 A	90

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 41.59

Description

General part information

CXB3590 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CXB3590 White, Cool Square

Documents

Technical documentation and resources
