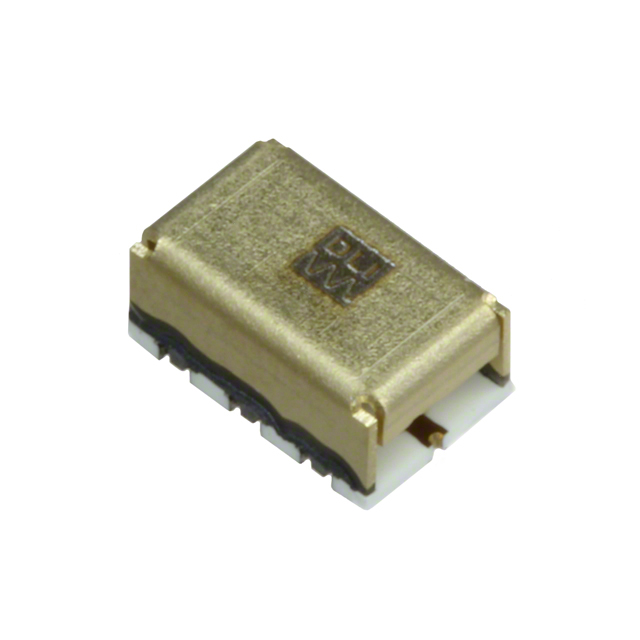

L117XH4S
ActiveKnowles Johanson Manufacturing
RF FILTER LOW PASS 5.5GHZ 6SMD
Deep-Dive with AI
Search across all available documentation for this part.
L117XH4S
ActiveKnowles Johanson Manufacturing
RF FILTER LOW PASS 5.5GHZ 6SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L117XH4S |
|---|---|
| Filter Type [custom] | Low Pass |
| Frequency | 5.5 GHz |
| Height (Max) [Max] | 2.62 mm |
| Height (Max) [Max] | 0.103 in |
| Insertion Loss | 1.5 dB |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension [x] | 0.22 in |
| Size / Dimension [x] | 5.59 mm |
| Size / Dimension [y] | 3.56 mm |
| Size / Dimension [y] | 0.14 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 105.89 | |
| 10 | $ 86.42 | |||
| 25 | $ 79.69 | |||
| 50 | $ 79.13 | |||
Description
General part information
L117XH Series
5.5GHz Center Frequency Low Pass RF Filter (Radio Frequency) Bandwidth 1.5dB 6-SMD, No Lead
Documents
Technical documentation and resources
No documents available
