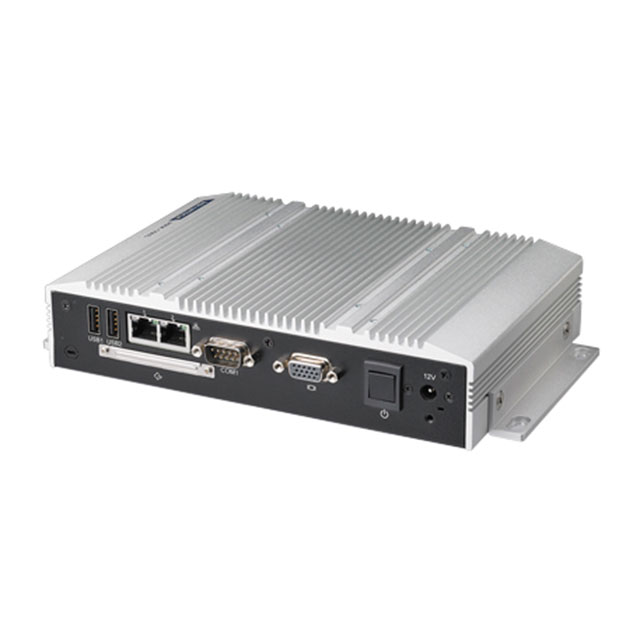

ARK-1503F-D6A1E
ObsoleteAdvantech Corp
SBC 1.8GHZ 2 CORE 4GB/0GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ARK-1503F-D6A1E
ObsoleteAdvantech Corp
SBC 1.8GHZ 2 CORE 4GB/0GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ARK-1503F-D6A1E |
|---|---|
| Cooling Type | Heat Sink |
| Core Processor | Intel Atom D525 |
| Digital I/O Lines | 8 |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Expansion Site/Bus | mPCIe |
| Number of Cores | 2 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| RAM Capacity/Installed | 4 GB, 0 GB |
| RS-232 (422, 485) | 2 |
| Size / Dimension [x] | 230.63 mm |
| Size / Dimension [x] | 9.08 in |
| Size / Dimension [y] | 5.24 in |
| Size / Dimension [y] | 133.09 mm |
| Speed | 1.8 GHz |
| Storage Interface | SATA HDD, CompactFlash SSD |
| USB | USB 2.0 (4) |
| Video Outputs | VGA, LVDS |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ARK-1503 Series
Single Board Computer 1.8GHz 2 Core 4GB/0GB RAM Intel Atom D525
