DCM3623E50M06A8M70

Active

Vicor Corporation

DCM3623T50M06A8M70 - EVALUATION

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DCM3623E50M06A8M70

Active

Vicor Corporation

DCM3623T50M06A8M70 - EVALUATION

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DCM3623E50M06A8M70

Board Type	Fully Populated
Current - Output	36 A
Main Purpose	DC/DC, Step Down
Outputs and Type	Isolated
Outputs and Type	1
Power - Output	180 W
Regulator Topology	Buck
Supplied Contents	Board(s)
Utilized IC / Part	DCM3623x50M06A8yzz
Voltage - Input [Max]	50 V
Voltage - Input [Min]	16 V
Voltage - Output	5 V

DCM3623 Series

...

Part	Current - Output (Max) [Max]	Applications	Power (Watts)	Voltage - Output 1	Efficiency	Package / Case	Features	Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Number of Outputs	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Supplied Contents	Outputs and Type	Outputs and Type	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Power - Output	Main Purpose	Current - Output	Utilized IC / Part	Regulator Topology	Board Type	Approval Agency
Vicor Corporation DCM3623T36G53C2T00	6.67 A	ITE (Commercial)	320.2 W	48 V	93 %	9-DIP Module	OCP OTP OVP SCP UVLO	Isolated Module	Through Hole	125 °C	-40 °C	2250 VDC	1	7.3 mm	1.52 in	22.8 mm	0.29 "	38.7 mm	0.9 "	18 V	36 V
Vicor Corporation DCM3623E36G31C2T00																						Board(s)	Isolated	1	36 V	18 V	28 V	320 W	DC/DC Step Down	11.43 A	DCM3623x36G31C2yzz	Buck	Fully Populated
Vicor Corporation DCM3623T75X1380T00	6.7 A	ITE (Commercial)	80 W	12 V	90.4 %	9-DIP Module	OCP OTP OVP SCP UVLO	Isolated Module	Through Hole	125 °C	-40 °C	2250 VDC	1	7.2 mm	1.52 in	22.8 mm	0.28 "	38.7 mm	0.9 "	9 V	75 V													CE
Vicor Corporation DCM3623T75H31C2M00	11.43 A	ITE (Commercial)	320 W	28 V	92.4 %	9-DIP Module	OCP OTP OVP SCP UVLO	Isolated Module	Through Hole	125 °C	-55 °C	2250 VDC	1	7.3 mm	1.52 in	22.8 mm	0.29 "	38.7 mm	0.9 "	36 V	75 V
Vicor Corporation DCM3623TA5N06A2T00	24 A	ITE (Commercial)	120 W	5 V	89.4 %	9-DIP Module	OCP OTP OVP SCP UVLO	Isolated Module	Through Hole	125 °C	-40 °C	3000 V	1	7.2 mm	1.52 in	22.8 mm	0.28 "	38.72 mm	0.9 "	43 V	154 V
Vicor Corporation DCM3623T50M26C2M00	13.4 A	ITE (Commercial)	321.6 W	24 V	91.8 %	9-DIP Module	OCP OTP OVP SCP UVLO	Isolated Module	Through Hole	125 °C	-55 °C	2250 VDC	1	7.3 mm	1.52 in	22.8 mm	0.29 "	38.7 mm	0.9 "	16 V	50 V
Vicor Corporation DCM3623T50M04A2M00	36.4 A	ITE (Commercial)	120.1 W	3.3 V	89.2 %	9-DIP Module	OCP OTP OVP SCP UVLO	Isolated Module	Through Hole	125 °C	-55 °C	2250 VDC	1	7.3 mm	1.52 in	22.8 mm	0.29 "	38.7 mm	0.9 "	16 V	50 V
Vicor Corporation DCM3623TA5N53B4T00	5 A	ITE (Commercial)	240 W	48 V	90.7 %	9-DIP Module	OCP OTP OVP SCP UVLO	Isolated Module	Through Hole	125 °C	-40 °C	3000 V	1	7.2 mm	1.52 in	22.8 mm	0.28 "	38.72 mm	0.9 "	43 V	154 V
Vicor Corporation DCM3623T50T13A6T00	13.4 A	ITE (Commercial)	160 W	12 V		9-DIP Module	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	Through Hole	125 °C	-40 °C	2250 VDC	1	7.3 mm	1.52 in	22.8 mm	0.29 "	38.7 mm	0.9 "	9 V	50 V
Vicor Corporation DCM3623E50M06A8M70																						Board(s)	Isolated	1	50 V	16 V	5 V	180 W	DC/DC Step Down	36 A	DCM3623x50M06A8yzz	Buck	Fully Populated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1056.51

Description

General part information

DCM3623 Series

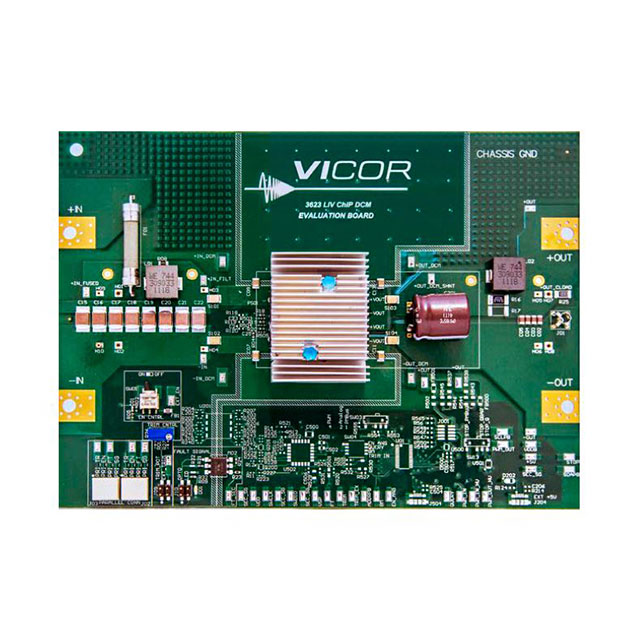

DCM3623x50M06A8yzz VI Chip® DCM® DC/DC, Step Down 1, Isolated Outputs Evaluation Board
