KAP1105E

Active

E-Switch

SWITCH PIANO DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PIANO DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	KAP1105E

Actuator Level	Raised
Actuator Type	Piano
Body Material	Polybutylene Terephthalate (PBT), Glass Filled
Circuit	SPST
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Height Above Board	10.2 mm
Height Above Board	0.402 in
Length [x]	14.25 mm
Length [x]	0.561 "
Mechanical Life	2000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	24 VDC
Washable	False

Part	Body Material	Contact Material	Washable	Mounting Type	Circuit	Actuator Type	Electrical Life	Current Rating (Amps)	Length [x]	Length [x]	Actuator Level	Voltage Rating	Pitch [x]	Pitch	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Contact Finish	Height Above Board	Height Above Board	Mechanical Life
E-Switch KAP1105E	Polybutylene Terephthalate (PBT) Glass Filled	Phosphor Bronze		Through Hole Right Angle	SPST	Piano	2000 Steps	25 mA	14.25 mm	0.561 "	Raised	24 VDC	0.1 in	Full	2.54 mm	85 °C	-40 °C	PC Pin	Gold	10.2 mm	0.402 in	2000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1024	$ 0.84

General part information

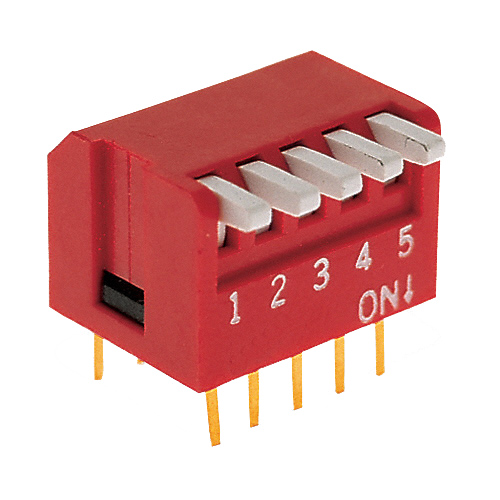

Dip Switch SPST 5 Position Through Hole, Right Angle Piano Actuator 25mA 24VDC
