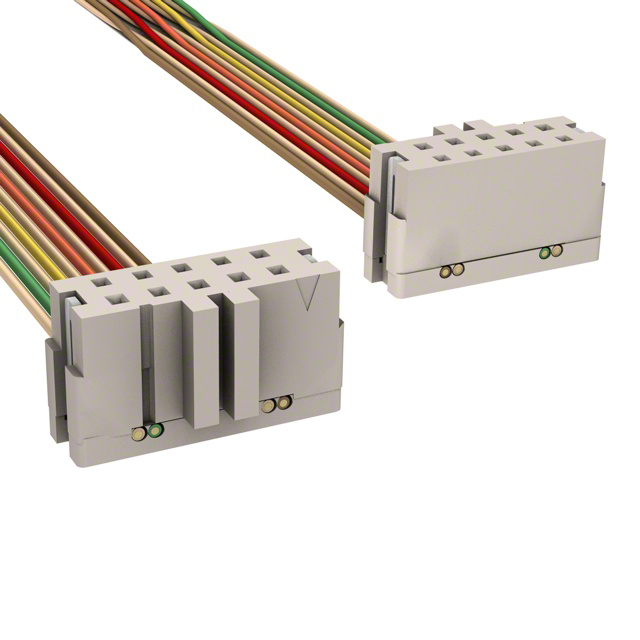

M3TTK-1060K

Active

3M (TC)

IDC CABLE - MSD10K/MC10F/MSD10K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 1700 Series +1

M3TTK-1060K

Active

3M (TC)

IDC CABLE - MSD10K/MC10F/MSD10K

Deep-Dive with AI

DocumentsDatasheet 1700 Series +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3TTK-1060K

Cable Termination	IDC
Color	Multiple, Twisted Pair (Flat)
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key
Length	1.52 m
Length	5 '
Number of Positions	10
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3TTK Series

Part	Pitch - Connector	Pitch - Connector	Number of Positions	Contact Finish	Pitch - Cable	Pitch - Cable	Features	Color	Number of Rows	Length	Length	Cable Termination	Shielding	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Length [x]	Length [x]	Length	Length	Number of Positions
3M (TC) M3TTK-3420K	0.1 in	2.54 mm	34	Gold	0.05 "	1.27 mm	Polarizing Key	Multiple Twisted Pair (Flat)	2	508 mm	1.67 ft	IDC	Unshielded	0.76 Ám	30 Áin	Socket to Socket
3M (TC) M3TTK-2618R	0.1 in	2.54 mm	26	Gold	0.05 "	1.27 mm	Polarizing Key	Multiple Ribbon	2			IDC	Unshielded	0.76 Ám	30 Áin	Socket to Socket	457.2 mm	1.5 ft
3M (TC) M3TTK-1060K	0.1 in	2.54 mm	10	Gold	0.05 "	1.27 mm	Polarizing Key	Multiple Twisted Pair (Flat)	2	1.52 m	5 '	IDC	Unshielded	0.76 Ám	30 Áin	Socket to Socket
3M (TC) M3TTK-1036R	0.1 in	2.54 mm	10	Gold	0.05 "	1.27 mm	Polarizing Key	Multiple Ribbon	2			IDC	Unshielded	0.76 Ám	30 Áin	Socket to Socket	914.4 mm	3 ft
3M (TC) M3TTK-3460K	0.1 in	2.54 mm	34	Gold	0.05 "	1.27 mm	Polarizing Key	Multiple Twisted Pair (Flat)	2	1.52 m	5 '	IDC	Unshielded	0.76 Ám	30 Áin	Socket to Socket
3M (TC) M3TTK-6006J	0.1 in	2.54 mm	60	Gold	0.05 "	1.27 mm	Polarizing Key		2	152.4 mm		IDC	Unshielded	0.76 Ám	30 Áin	Socket to Socket			6 "	0.5 '
3M (TC) M3TTK-2006J	0.1 in	2.54 mm	20	Gold	0.05 "	1.27 mm	Polarizing Key		2	152.4 mm		IDC	Unshielded	0.76 Ám	30 Áin	Socket to Socket			6 "	0.5 '
3M (TC) M3TTK-2020K	0.1 in	2.54 mm	20	Gold	0.05 "	1.27 mm	Polarizing Key	Multiple Twisted Pair (Flat)	2	508 mm	1.67 ft	IDC	Unshielded	0.76 Ám	30 Áin	Socket to Socket
3M (TC) M3TTK-1440K	0.1 in	2.54 mm	14	Gold	0.05 "	1.27 mm	Polarizing Key	Multiple Twisted Pair (Flat)	2			IDC	Unshielded	0.76 Ám	30 Áin	Socket to Socket	1.02 m	3.34 ft
3M (TC) M3TTK-1620K	0.1 in	2.54 mm		Gold	0.05 "	1.27 mm	Polarizing Key	Multiple Twisted Pair (Flat)	2	508 mm	1.67 ft	IDC	Unshielded	0.76 Ám	30 Áin	Socket to Socket					16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.32
		10	$ 12.55
		25	$ 11.35
		50	$ 10.54
		100	$ 9.80
		250	$ 8.93
		500	$ 8.35
		1000	$ 7.82

Description

General part information

M3TTK Series

10 Position Cable Assembly Rectangular Socket to Socket 5.00' (1.52m)

Documents

Technical documentation and resources

Datasheet

1700 Series

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet
