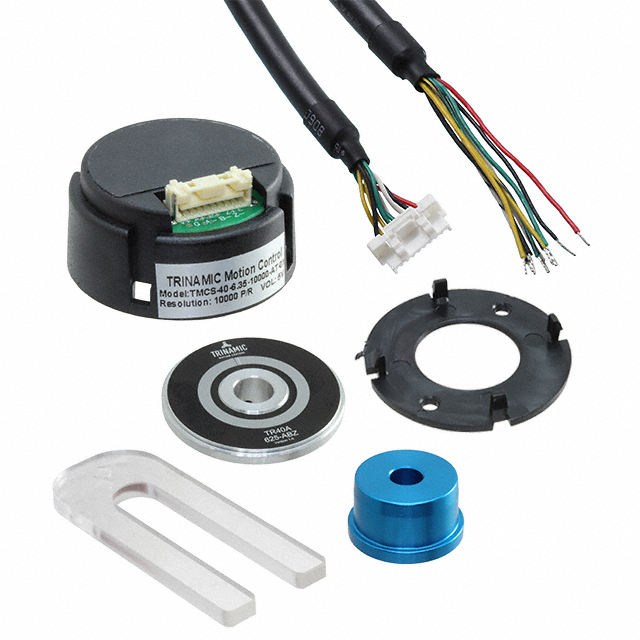

TMCS-40-10K-KIT
ActiveAnalog Devices Inc./Maxim Integrated
ROTARY ENCODER OPTICAL 10000PPR
Deep-Dive with AI
Search across all available documentation for this part.
TMCS-40-10K-KIT
ActiveAnalog Devices Inc./Maxim Integrated
ROTARY ENCODER OPTICAL 10000PPR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMCS-40-10K-KIT |
|---|---|
| Actuator Type | Shaft |
| Built in Switch | False |
| Detent | False |
| Encoder Type | Optical |
| Mounting Type | Chassis Mount |
| Orientation | Vertical |
| Output Type | TTL |
| Pulses per Revolution | 10000 per Revolution |
| Termination Style | Pin Header |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 126.84 | |
| 5 | $ 108.91 | |||
| 10 | $ 101.94 | |||
| 25 | $ 93.36 | |||
| 50 | $ 87.32 | |||
| 100 | $ 83.86 | |||
Description
General part information
TMCS-40 Series
Rotary Encoder Optical 10000 TTL Vertical
Documents
Technical documentation and resources
No documents available
