DC0011/07-TI900-0.12-0

Active

t-Global Technology

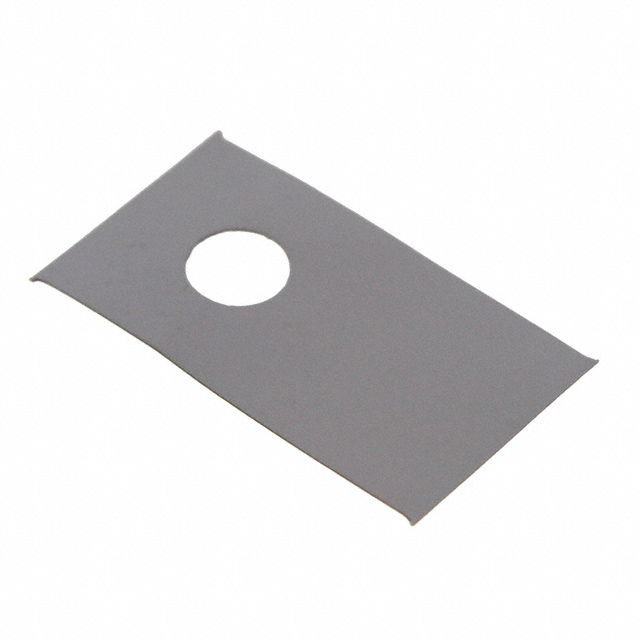

THERM PAD 19.05MMX10.41MM WHT

Search across all available documentation for this part.

Active

t-Global Technology

THERM PAD 19.05MMX10.41MM WHT

Technical Specifications

Parameters and characteristics for this part

Part	Shape	Shelf Life	Usage	Thermal Conductivity	Material	Thickness [x]	Thickness [x]	Color	Backing, Carrier	Type	Outline [x]	Outline [y]	Adhesive	Thickness [custom]	Thickness [custom]	Shelf Life Start	Thickness	Thickness
t-Global Technology DC0011/07-TI900-0.12-0	Rectangular	24 Months	TO-220	1.8 W/m-K	Silicone	0.005 in	0.127 mm	White	Viscose	Die-Cut Pad Sheet	19.05 mm	10.41 mm
t-Global Technology DC0011/07-TG-A486G-0.3-2A	Rectangular	12 Months	TO-220	6 W/m-K				Gray		Die-Cut Pad Sheet	19.05 mm	10.41 mm	Adhesive - Both Sides	0.305 mm	0.012 "	Date of Purchase
t-Global Technology DC0011/07-TI900-0.12-2A	Rectangular	24 Months	TO-220	1.8 W/m-K	Silicone	0.005 in	0.127 mm	White	Viscose	Die-Cut Pad Sheet	19.05 mm	10.41 mm	Adhesive - Both Sides
t-Global Technology DC0011/07-TG-A373F-0.25-2A	Rectangular	12 Months	TO-220	1.4 W/m-K				Yellow		Die-Cut Pad Sheet	19.05 mm	10.41 mm	Adhesive - Both Sides	0.254 mm	0.01 in
t-Global Technology DC0011/07-TG-A482K-0.1-0	Rectangular	24 Months	TO-220	2.3 W/m-K	Silicone			Red		Die-Cut Pad Sheet	19.05 mm	10.41 mm				Date of Purchase	0.1 mm	0.0039 in
t-Global Technology DC0011/07-TG-AH482-2.0-0	Rectangular	24 Months	TO-220	2.2 W/m-K				Red		Die-Cut Pad Sheet	19.05 mm	10.41 mm					2 mm	0.079 in
