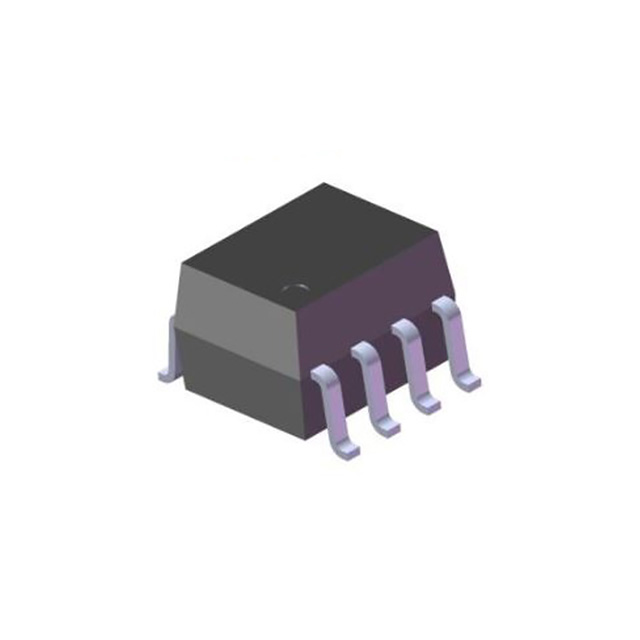

EL0631(TA)

Active

Everlight Electronics Co Ltd

OPTOISO 3.75KV 2CH OPEN COL 8SOP

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

OPTOISO 3.75KV 2CH OPEN COL 8SOP

Technical Specifications

Parameters and characteristics for this part

Specification	EL0631(TA)

Common Mode Transient Immunity (Min) [Min]	10 kV/µs
Current - DC Forward (If) (Max) [Max]	20 mA
Current - Output / Channel	50 mA
Data Rate	10 Mbps
Input Type	DC
Inputs - Side 1/Side 2 [custom]	2
Inputs - Side 1/Side 2 [custom]	0
Mounting Type	Surface Mount
Number of Channels [custom]	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Output Type	Open Collector
Package / Case	8-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Propagation Delay tpLH / tpHL (Max) [custom]	100 ns
Propagation Delay tpLH / tpHL (Max) [custom]	100 ns
Rise / Fall Time (Typ) [custom]	40 ns
Rise / Fall Time (Typ) [custom]	10 ns
Supplier Device Package	8-SOP
Voltage - Forward (Vf) (Typ)	1.4 V
Voltage - Isolation	3750 Vrms
Voltage - Supply	7 V

Part	Number of Channels [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Typ)	Voltage - Isolation	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Data Rate	Current - DC Forward (If) (Max) [Max]	Mounting Type	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Package / Case	Package / Case [y]	Package / Case [x]	Supplier Device Package	Voltage - Supply	Current - Output / Channel	Common Mode Transient Immunity (Min) [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Input Type	Output Type
Everlight Electronics Co Ltd EL0631(TA)-V	2	100 °C	-40 °C	1.4 V	3750 Vrms	100 ns	100 ns	10 Mbps	20 mA	Surface Mount	2	0	8-SOIC	3.9 mm	0.154 in	8-SOP	7 V	50 mA	10 kV/µs	40 ns	10 ns	DC	Open Collector
Everlight Electronics Co Ltd EL0631(TA)	2	100 °C	-40 °C	1.4 V	3750 Vrms	100 ns	100 ns	10 Mbps	20 mA	Surface Mount	2	0	8-SOIC	3.9 mm	0.154 in	8-SOP	7 V	50 mA	10 kV/µs	40 ns	10 ns	DC	Open Collector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Logic Output Optoisolator 10Mbps Open Collector 3750Vrms 2 Channel 10kV/µs CMTI 8-SOP
