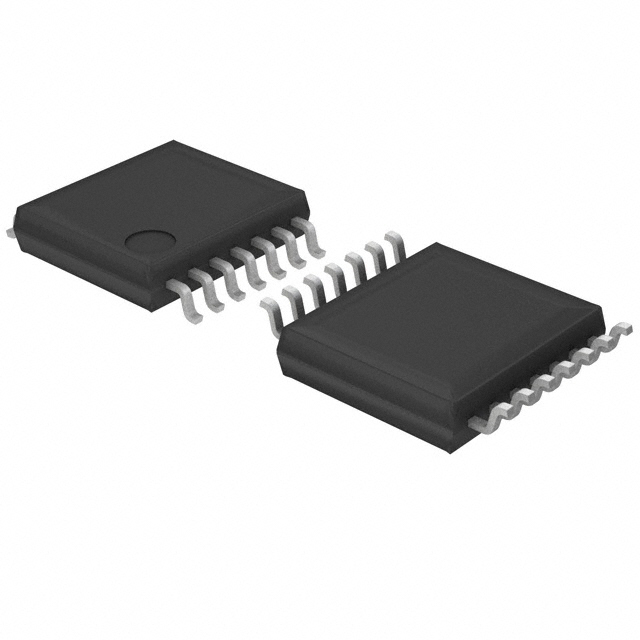

BA10324AFV-E2

NRND

Rohm Semiconductor

OP AMP QUAD GP ±16V/32V 14-PIN SSOP-B T/R

Deep-Dive with AI

Search across all available documentation for this part.

BA10324AFV-E2

NRND

Rohm Semiconductor

OP AMP QUAD GP ±16V/32V 14-PIN SSOP-B T/R

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BA10324AFV-E2

Amplifier Type	General Purpose
Current - Input Bias	20 nA
Current - Output / Channel	35 mA
Current - Supply	600 µA
Gain Bandwidth Product	500 kHz
Mounting Type	Surface Mount
Number of Circuits	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	0.173 ", 4.4 mm
Package / Case	14-LSSOP
Slew Rate	0.2 V/µs
Supplier Device Package	14-SSOP-B
Voltage - Input Offset	2 mV
Voltage - Supply Span (Max) [Max]	32 V
Voltage - Supply Span (Min) [Min]	3 V

BA10324 Series

Part	Gain Bandwidth Product	Current - Input Bias	Number of Circuits	Voltage - Supply Span (Max) [Max]	Voltage - Input Offset	Slew Rate	Supplier Device Package	Voltage - Supply Span (Min) [Min]	Amplifier Type	Mounting Type	Package / Case [x]	Package / Case [y]	Package / Case	Current - Output / Channel	Current - Supply	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [custom]	Package / Case [custom]	Package / Case
Rohm Semiconductor BA10324AFJ-GE2	500 kHz	20 nA	4	32 V	2 mV	0.2 V/µs	14-SOPJ	3 V	General Purpose	Surface Mount	0.154 in	3.9 mm	14-SOIC	35 mA	500 µA	85 °C	-40 °C
Rohm Semiconductor BA10324AF-E2	500 kHz	20 nA	4	32 V	2 mV	0.2 V/µs	14-SOP	3 V	General Purpose	Surface Mount			14-SOIC	35 mA	600 µA	85 °C	-40 °C	4.4 mm	0.173 "
Rohm Semiconductor BA10324AFV-E2	500 kHz	20 nA	4	32 V	2 mV	0.2 V/µs	14-SSOP-B	3 V	General Purpose	Surface Mount			14-LSSOP	35 mA	600 µA	85 °C	-40 °C			0.173 " 4.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.38
		10	$ 0.87
		25	$ 0.73
		100	$ 0.58
		250	$ 0.50
		500	$ 0.46
		1000	$ 0.42
	Digi-Reel®	1	$ 1.38
		10	$ 0.87
		25	$ 0.73
		100	$ 0.58
		250	$ 0.50
		500	$ 0.46
		1000	$ 0.42
	Tape & Reel (TR)	2500	$ 0.38
		5000	$ 0.35
		7500	$ 0.34
		12500	$ 0.33
		17500	$ 0.32
		25000	$ 0.31

Description

General part information

BA10324 Series

ROHM's general purpose BA10358 and BA10324A models, along with its BA2904 and BA2902 high reliability units, feature high gain and built-in phase compensation and integrate 2 or 4 circuits on a single chip. Additional features include a wide operating voltage range of 3V to 32V (single power supply use) and low current consumption, making them ideal for a broad number of applications. The BA3404 in particular delivers faster speeds while reducing crossover distortion compared with the BA10358 and BA2904 models.·Operable with a single power supply·Wide operating supply voltage+3.0[V]~+32.0[V]( single supply)·Standard Op-Amp Pin-assignments·Input and output are operable GND sense·Internal phase compensation type·Low supply current·High open loop voltage gain·Wide temperature range-40[?]~+85[?]
