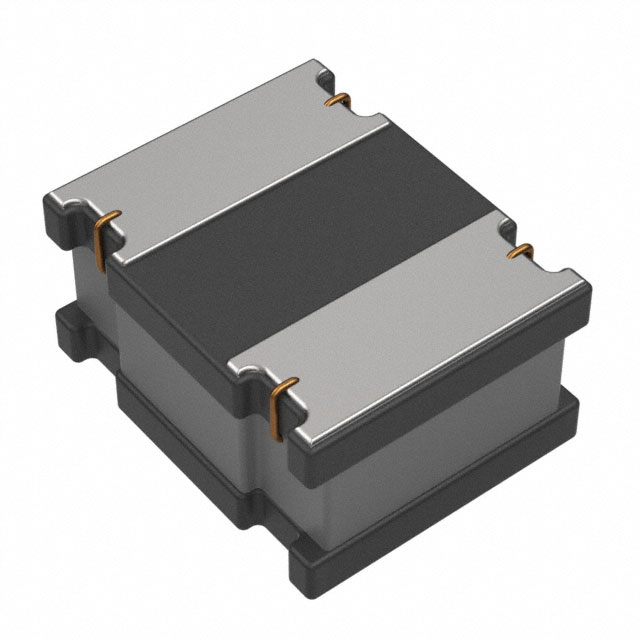

SDED20161T-2R2MS

Active

Delta Electronics/Cyntec

FIXED IND 2.2UH 1.35A 230MOHM SM

Search across all available documentation for this part.

Active

Delta Electronics/Cyntec

FIXED IND 2.2UH 1.35A 230MOHM SM

Technical Specifications

Parameters and characteristics for this part

Part	Inductance Frequency - Test	Current - Saturation (Isat)	Inductance	DC Resistance (DCR) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Tolerance	Current Rating (Amps)	Package / Case	Shielding	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	DC Resistance (DCR)
Delta Electronics/Cyntec SDED20161T-2R2MS	1 MHz	1.31 A	2.2 µH	230 mOhm	-55 °C	125 °C	0.039 "	1 mm	0806	20 %	1.35 A	0806 (2016 Metric)	Shielded	2 mm	0.063 in	1.6 mm	0.079 in	Surface Mount
Delta Electronics/Cyntec SDED20161T-100MS	1 MHz	550 mA	10 µH	1.119 Ohm	-55 °C	125 °C	0.039 "	1 mm	0806	20 %	470 mA	0806 (2016 Metric)	Shielded	2 mm	0.063 in	1.6 mm	0.079 in	Surface Mount
Delta Electronics/Cyntec SDED20161T-4R7MS	1 MHz	760 mA	4.7 ÁH	387 mOhm	-55 °C	125 °C	0.039 "	1 mm	0806	20 %	950 mA	0806 (2016 Metric)	Shielded	2 mm	0.063 in	1.6 mm	0.079 in	Surface Mount
Delta Electronics/Cyntec SDED20161T-3R3MS	1 MHz	950 mA	3.3 µH		-55 °C	125 °C	0.039 "	1 mm	0806	20 %	1.05 A	0806 (2016 Metric)	Shielded	2 mm	0.063 in	1.6 mm	0.079 in	Surface Mount
Delta Electronics/Cyntec SDED20161T-1R0MS	1 MHz	1.8 A	1 µH		-55 °C	125 °C	0.039 "	1 mm	0806	20 %	1.7 A	0806 (2016 Metric)	Shielded	2 mm	0.063 in	1.6 mm	0.079 in	Surface Mount	107 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.2 µH Shielded Inductor 1.35 A 230mOhm Max 0806 (2016 Metric)
