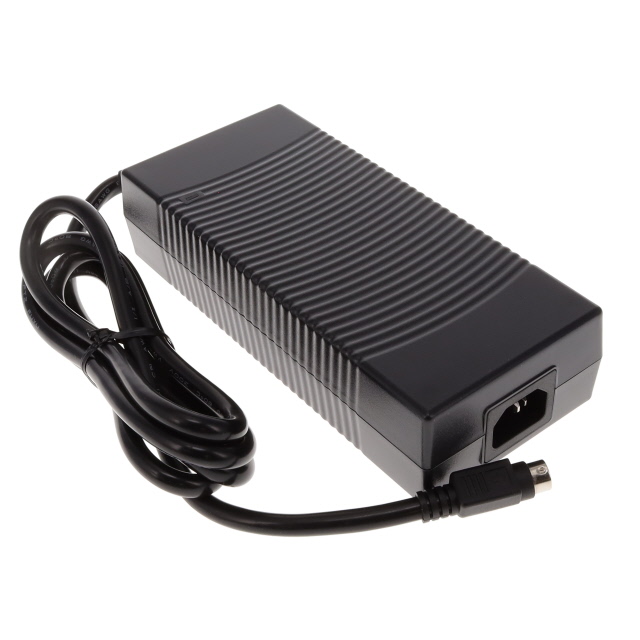

PPL200U-480
ActivePhihong USA
AC/DC DESKTOP ADAPTER 48V 200W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PPL200U-480
ActivePhihong USA
AC/DC DESKTOP ADAPTER 48V 200W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PPL200U-480 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | IEC, cULus |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 4.17 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption [Max] | 150 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | 4 Pin |
| Output Connector | Power DIN |
| Power (Watts) | 200 W |
| Region Utilized | International |
| Size / Dimension [x] | 183.2 mm |
| Size / Dimension [x] | 7.21 in |
| Size / Dimension [y] | 81 mm |
| Size / Dimension [y] | 3.19 in |
| Size / Dimension [z] | 1.67 in |
| Size / Dimension [z] | 42.3 mm |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 79.15 | |
| 10 | $ 77.57 | |||
| 25 | $ 74.67 | |||
| 50 | $ 73.61 | |||
| 100 | $ 72.02 | |||
Description
General part information
PPL200 Series
48V 200 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
