1064620

Active

SICK, Inc.

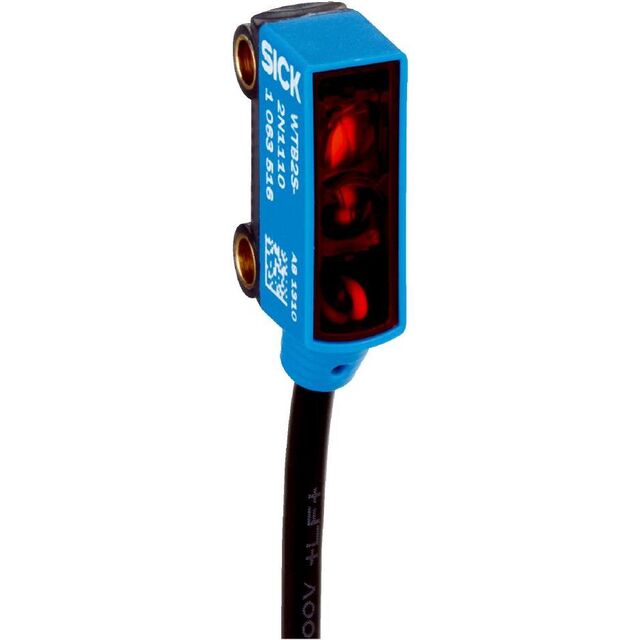

SENSOR PROXIMITY 90MM PNP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1064620

Active

SICK, Inc.

SENSOR PROXIMITY 90MM PNP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1064620

Adjustment Type	Adjustable
Cable Length	0.2 m
Cable Length	7.87 in
Connection Method	Cable with Connector
Ingress Protection	IP67
Light Source	Red
Light Source	640 nm
Output Configuration	PNP
Response Time	500 µs
Sensing Distance	4 mm, 90 mm
Sensing Distance [Max]	3.543 in
Sensing Distance [Min]	0.157 "
Sensing Method	Proximity
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

WTB2S Series

Part	Light Source	Light Source	Connection Method	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Cable Length	Cable Length	Sensing Method	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Response Time	Output Configuration	Sensing Distance [Max]	Sensing Distance	Sensing Distance [Min]	Adjustment Type
SICK, Inc. 1064576	Red	640 nm	Cable with Connector	IP67	30 VDC	10 VDC	0.2 m	7.87 in	Proximity	1.417 "	36 mm	1 mm	0.039 "	400 µs	PNP
SICK, Inc. 1064620	Red	640 nm	Cable with Connector	IP67	30 VDC	10 VDC	0.2 m	7.87 in	Proximity					500 µs	PNP	3.543 in	4 mm 90 mm	0.157 "	Adjustable
SICK, Inc. 1064578	Red	640 nm	Cable	IP67	30 VDC	10 VDC	2 m	78.74 in	Proximity	1.417 "	36 mm	1 mm	0.039 "	400 µs	NPN
SICK, Inc. 1064606	Red	640 nm	Cable	IP67	30 VDC	10 VDC	2 m	78.74 in	Proximity	66 mm			1 mm	500 µs	PNP	2.598 "		0.039 in
SICK, Inc. 1064249	Red	640 nm	Cable	IP67	30 VDC	10 VDC	2 m	78.74 in	Proximity	18 mm			1 mm	400 µs	NPN	0.709 "		0.039 in
SICK, Inc. WTB2S-2N1151	Red	640 nm	Cable	IP67	30 VDC	10 VDC	2 m	78.74 in	Proximity	15 cm			1 mm	500 µs	NPN	5.906 "		0.039 in	Adjustable 3-Turn Potentiometer
SICK, Inc. 1066110	Red	640 nm	Cable	IP67	30 VDC	10 VDC	2 m	78.74 in	Proximity	15 cm			1 mm	500 µs	PNP	5.906 "		0.039 in	Adjustable 3-Turn Potentiometer
SICK, Inc. 1064608	Red	640 nm	Cable with Connector	IP67	30 VDC	10 VDC	0.2 m	7.87 in	Proximity	66 mm			1 mm	500 µs	PNP	2.598 "		0.039 in
SICK, Inc. 1064615	Red	640 nm	Cable with Connector	IP67	30 VDC	10 VDC	0.2 m	7.87 in	Proximity	110 mm			4 mm	500 µs	PNP	4.331 "		0.157 "	Adjustable
SICK, Inc. 1064574	Red	640 nm	Cable	IP67	30 VDC	10 VDC	2 m	78.74 in	Proximity	1.417 "	36 mm	1 mm	0.039 "	400 µs	PNP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 268.38
		5	$ 251.73
		10	$ 246.00

Description

General part information

WTB2S Series

Proximity Optical Sensor 0.157" ~ 3.543" (4mm ~ 90mm) PNP
