1387LP 009500

Active

Belden Inc.

CABLE 4COND 18AWG/22AWG WHT

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 18AWG/22AWG WHT

Technical Specifications

Parameters and characteristics for this part

Specification	1387LP 009500

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	19, 7
Conductor Strand [custom]	30
Features	Drain Wire
Jacket (Insulation) Diameter	5.79 mm
Jacket (Insulation) Diameter	0.228 in
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF), Plenum
Length [x]	500 '
Length [x]	152.4 m
Ratings	UL Style CMP
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Automation and Lighting Control
Voltage	300 V
Wire Gauge	22 AWG, 18 AWG

Part	Length [x]	Length [x]	Voltage	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Wire Gauge	Conductor Insulation	Conductor Material	Shield Type	Jacket (Insulation) Material	Usage	Cable Type	Features	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Shield Material	Ratings
Belden Inc. 1387LP 009500	500 '	152.4 m	300 V	5.79 mm	0.228 in	18 AWG 22 AWG	Fluorinated Ethylene-Propylene (FEP)	Copper Bare	Foil	Plenum Polyvinylidene Fluoride (PVDF)	Automation and Lighting Control	Multi-Conductor	Drain Wire	7 19	30	100 %	Aluminum	UL Style CMP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 1.73

General part information

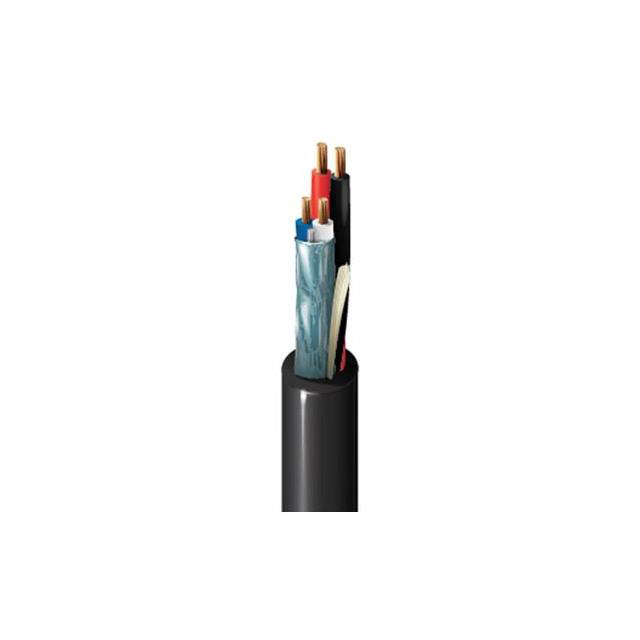

4 (1 Pair Twisted) Conductor Multi-Conductor Cable White 18 AWG, 22 AWG Foil 500.0' (152.4m)
