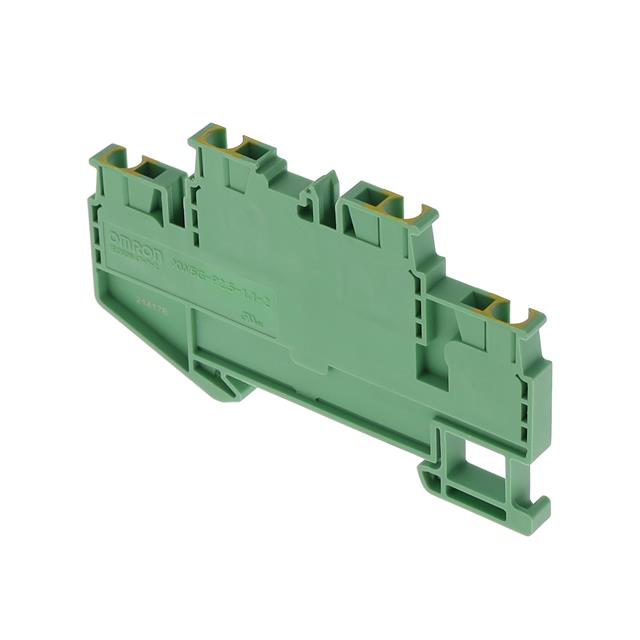

XW5G-P2.5-1.1-2

Active

Omron Electronics Inc-EMC Div

TERM BLK GND PUSH 2.5MM 1:1 2TIE

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

TERM BLK GND PUSH 2.5MM 1:1 2TIE

Technical Specifications

Parameters and characteristics for this part

Specification	XW5G-P2.5-1.1-2

Color	Green, Yellow
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Number of Levels	2
Number of Levels	Connected
Number of Positions	4
Stripping Length	10 mm
Terminal - Width [y]	5.2 mm
Termination Style	Push In
Type	Ground, Earth
Voltage - IEC	500 V
Voltage - UL	600 V
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm˛ [Max]	4 mm˛
Wire Gauge or Range - mm˛ [Min]	0.14 mm˛
Wire Gauge or Range - mm² [Max]	4 mm²
Wire Gauge or Range - mm² [Min]	0.14 mm²

Part	Color	Number of Positions	Stripping Length	Type	Material Flammability Rating	Voltage - IEC	Terminal - Width [y]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - UL	Number of Levels	Number of Levels	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Material - Insulation	Termination Style
Omron Electronics Inc-EMC Div XW5G-P2.5-1.1-2	Green Yellow	4	10 mm	Ground Earth	UL94 V-0	500 V	5.2 mm	12 AWG	26 AWG	0.14 mm²	4 mm²	600 V	2	Connected	0.14 mm˛	4 mm˛	Nylon Polyamide (PA)	Push In
Omron Electronics Inc-EMC Div XW5G-P2.5-2.2-1	Green Yellow	4	10 mm	Ground Earth	UL94 V-0	800 V	5.2 mm	12 AWG	26 AWG			600 V	1		0.14 mm˛	4 mm˛	Nylon Polyamide (PA)	Push In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 4 Position Ground, Earth Green, Yellow 12-26 AWG
