44-653000-10
ActiveAries Electronics

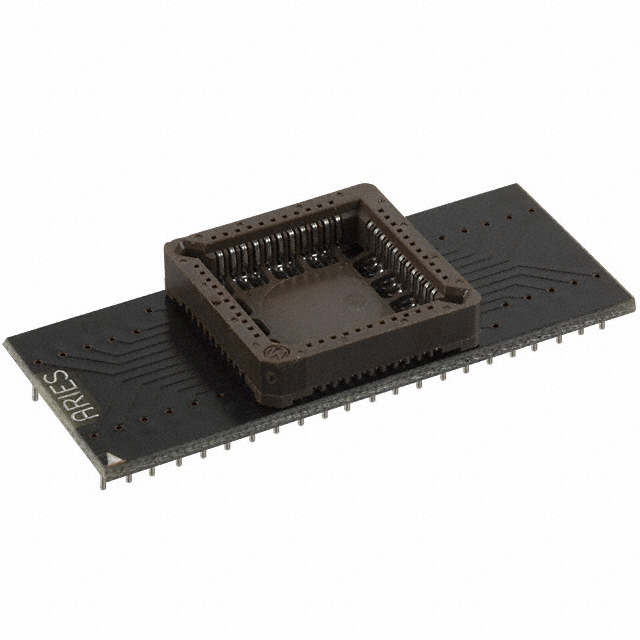

SOCKET ADAPTER PLCC TO 44DIP 0.6
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
44-653000-10
ActiveAries Electronics
SOCKET ADAPTER PLCC TO 44DIP 0.6
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 44-653000-10 |
|---|---|
| Board Material | FR4 Epoxy Glass |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Material - Post [custom] | Brass |
| Convert From (Adapter End) | PLCC |
| Convert To (Adapter End) | 0.6 in |
| Convert To (Adapter End) | DIP |
| Convert To (Adapter End) | 15.24 mm |
| Current Rating (Amps) | 1 A |
| Features | Socket Included |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Pins | 44 |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length | 3.18 mm |
| Termination Post Length | 0.125 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 36 | $ 119.78 | |
Description
General part information
44-6530 Series
IC Socket Adapter PLCC To DIP, 0.6" (15.24mm) Row Spacing Through Hole
