R191316700

Active

Radiall USA, Inc.

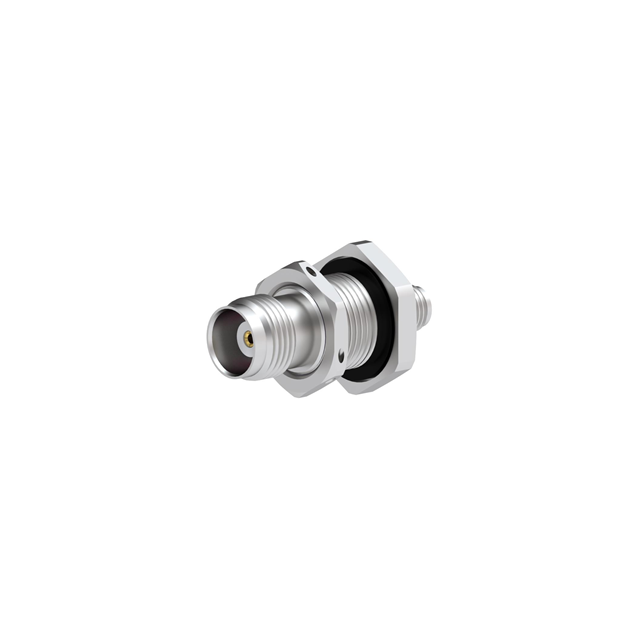

SMA 3.5 FEMALE - TNC 18 FEMALE B

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA 3.5 FEMALE - TNC 18 FEMALE B

Technical Specifications

Parameters and characteristics for this part

Specification	R191316700

Adapter Series	SMA to TNC
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Bronze
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	Female Socket, TNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Feature	Bulkhead
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Frequency - Max [Max]	Style	Body Material	Convert To (Adapter End)	Convert From (Adapter End)	Conversion Type	Adapter Series	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Center Contact Material	Center Contact Plating	Adapter Type	Center Gender	Impedance	Dielectric Material
Radiall USA, Inc. R191316700	18 GHz	Straight	Stainless Steel	Female Socket TNC Jack	Female Socket SMA Jack	Between Series	SMA to TNC	125 °C	-65 ░C	Bulkhead	Bronze	Gold	Jack to Jack	Female to Female	50 Ohms	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To TNC Jack, Female Socket 50 Ohms
