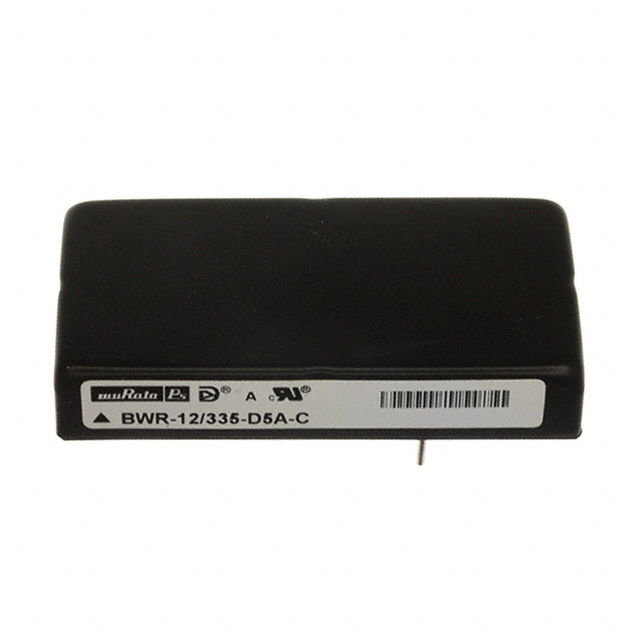

BWR-12/335-D5A-C

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-12V 8W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-12V 8W

Technical Specifications

Parameters and characteristics for this part

Part	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Isolation	Package / Case	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Voltage - Output 2	Voltage - Output 1	Mounting Type	Efficiency	Number of Outputs	Current - Output (Max) [Min]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Power (Watts)	Current - Output (Max)
Murata Power Solutions Inc. BWR-12/335-D5A-C	Isolated Module	25.4 mm	50.8 mm	0.38 in	9.7 mm	25.4 mm	2 in	1000 V	5-DIP Module	ITE (Commercial)	100 °C	-40 °C	7.25 V	-12 V	12 V	Through Hole	78 %	2	335 mA	335 mA	4.7 V	8 W
Murata Power Solutions Inc. BWR-12/415-D48A-C	Isolated Module	25.4 mm	50.8 mm	0.38 in	9.7 mm	25.4 mm	2 in	1000 V	5-DIP Module	ITE (Commercial)	100 °C	-40 °C	75 V	-12 V	12 V	Through Hole	84 %	2			18 V	10 W	415 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 335mA, 335mA 4.7V - 7.25V Input
