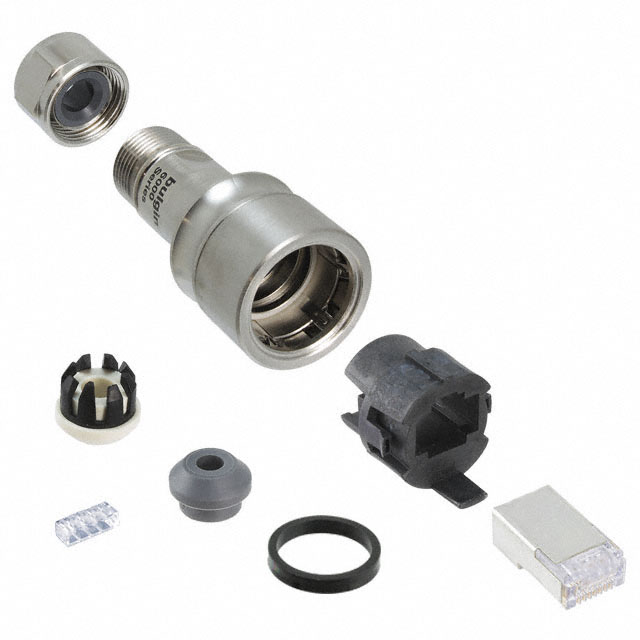

PXM6034/A

Active

BULGIN LIMITED

CONN MOD PLUG 8P8C SHIELDED

Search across all available documentation for this part.

Active

BULGIN LIMITED

CONN MOD PLUG 8P8C SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	PXM6034/A

Cable Type	Round Cable, Solid, Stranded Wires
Color	Silver
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Current Rating (Amps)	1.5 A
Features	Circular Threaded Coupling
Housing Material	Polycarbonate (PC)
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Ratings	Cat5e
Shielding	Shielded
Termination	IDC
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	24 AWG

Part	Housing Material	Contact Material	Ratings	Ingress Protection	Color	Contact Finish Thickness	Contact Finish Thickness	Termination	Shielding	Contact Finish	Features	Cable Type	Current Rating (Amps)	Number of Positions/Contacts	Wire Gauge [Min]	Wire Gauge [Max]	Connector Type
BULGIN LIMITED PXM6034/A	Polycarbonate (PC)	Phosphor Bronze	Cat5e	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Silver	50 µin	1.27 µm	IDC	Shielded	Gold	Circular Threaded Coupling	Round Cable Solid Stranded Wires	1.5 A	8p8c (RJ45 Ethernet)	24 AWG	28 AWG	Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat5e IDC
