BA6680FS-E2

Obsolete

Rohm Semiconductor

IC MOTOR DRIVER 16V-28V 32SSOPA

Search across all available documentation for this part.

Obsolete

Rohm Semiconductor

IC MOTOR DRIVER 16V-28V 32SSOPA

Technical Specifications

Parameters and characteristics for this part

Specification	BA6680FS-E2

Applications	Printer
Function	Controller - Commutation, Direction Management
Interface	Parallel
Motor Type - AC, DC	Brushless DC (BLDC)
Mounting Type	Surface Mount
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-25 °C
Output Configuration	Pre-Driver - Half Bridge (3)

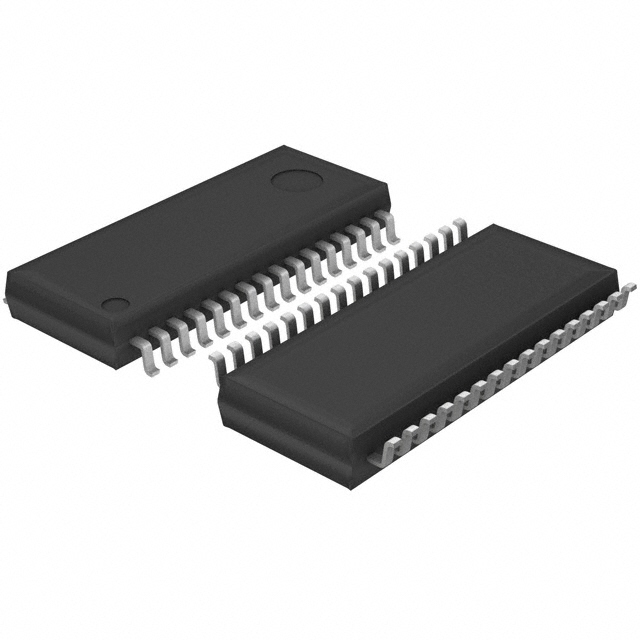

Package / Case	32-SOP
Package / Case [x]	0.213 in
Package / Case [y]	5.4 mm
Supplier Device Package	32-SSOP-A
Technology	Power MOSFET
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	16 V

Part	Output Configuration	Applications	Interface	Supplier Device Package	Package / Case	Package / Case [x]	Package / Case [y]	Operating Temperature [Min]	Operating Temperature [Max]	Motor Type - AC, DC	Technology	Voltage - Supply [Max]	Voltage - Supply [Min]	Function	Mounting Type
Rohm Semiconductor BA6680FS-E2	Pre-Driver - Half Bridge (3)	Printer	Parallel	32-SSOP-A	32-SOP	0.213 in	5.4 mm	-25 °C	75 °C	Brushless DC (BLDC)	Power MOSFET	28 V	16 V	Controller - Commutation Direction Management	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Motor Driver Power MOSFET Parallel 32-SSOP-A

Technical documentation and resources

No documents available
