355-052-556-268
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 52POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
355-052-556-268
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 52POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 355-052-556-268 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 52 |
| Number of Positions/Bay/Row [custom] | 26 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
355-052 Series
| Part | Gender | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Color | Flange Feature | Material - Insulation | Card Type | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Read Out | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Termination Rows | Number of Positions/Bay/Row [custom] | Termination | Pitch [x] | Pitch [x] | Contact Finish | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | 52 | -40 °C | 105 ░C | Copper Alloy | Black | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Non Specified - Dual Edge | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 10 Áin | 0.25 Ám | Semi Bellows | 2 | 26 | Solder | 0.156 in | 3.96 mm | Gold | |||
EDAC Inc. | Female | 52 | -40 °C | 105 ░C | Copper Alloy | Black | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Non Specified - Dual Edge | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 10 Áin | 0.25 Ám | Semi Bellows | 2 | 26 | Solder | 0.156 in | 3.96 mm | Gold | |||
EDAC Inc. | Female | 52 | -40 °C | 105 ░C | Copper Alloy | Black | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Non Specified - Dual Edge | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 10 Áin | 0.25 Ám | Semi Bellows | 2 | 26 | Solder | 0.156 in | 3.96 mm | Gold | |||
EDAC Inc. | Female | 52 | -40 °C | 105 ░C | Copper Alloy | Black | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Non Specified - Dual Edge | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 10 Áin | 0.25 Ám | Semi Bellows | 2 | 26 | Solder | 0.156 in | 3.96 mm | Gold | Card Extender | 3.25 mm | 0.128 " |
EDAC Inc. | Female | 52 | -40 °C | 105 ░C | Copper Alloy | Black | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Non Specified - Dual Edge | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 10 Áin | 0.25 Ám | Semi Bellows | 2 | 26 | Solder | 0.156 in | 3.96 mm | Gold | Card Extender | ||
EDAC Inc. | Female | 52 | -40 °C | 105 ░C | Copper Alloy | Black | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Non Specified - Dual Edge | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 10 Áin | 0.25 Ám | Semi Bellows | 2 | 26 | Solder | 0.156 in | 3.96 mm | Gold | |||
EDAC Inc. | Female | 52 | -40 °C | 105 ░C | Copper Alloy | Black | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 10 Áin | 0.25 Ám | Semi Bellows | 2 | 26 | Solder Eyelet(s) | 0.156 in | 3.96 mm | Gold | ||||
EDAC Inc. | Female | 52 | -40 °C | 105 ░C | Copper Alloy | Black | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Non Specified - Dual Edge | Panel Mount Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 10 Áin | 0.25 Ám | Semi Bellows | 2 | 26 | Solder | 0.156 in | 3.96 mm | Gold | |||
EDAC Inc. | Female | 52 | -40 °C | 105 ░C | Copper Alloy | Black | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Non Specified - Dual Edge | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 10 Áin | 0.25 Ám | Semi Bellows | 2 | 26 | Solder | 0.156 in | 3.96 mm | Gold | |||
EDAC Inc. | Female | 52 | -40 °C | 105 ░C | Copper Alloy | Black | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Non Specified - Dual Edge | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 10 Áin | 0.25 Ám | Semi Bellows | 2 | 26 | Solder | 0.156 in | 3.96 mm | Gold | Card Extender | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
355-052 Series

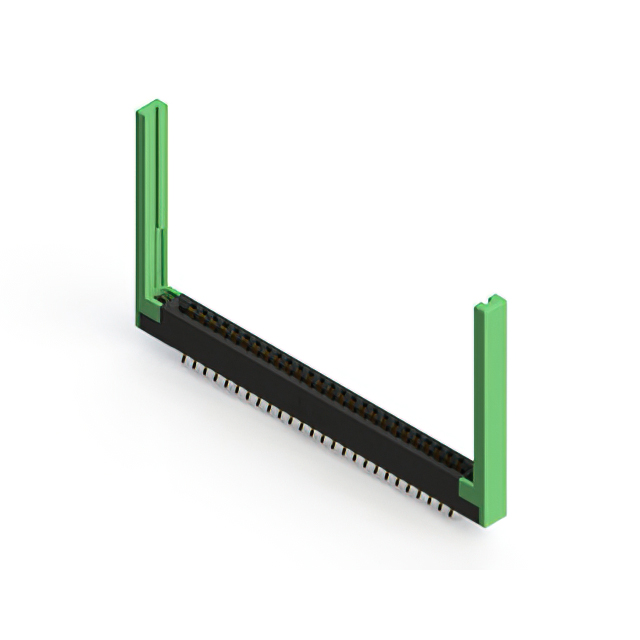

52 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
