804-V3-021-22-002101

Active

PRECI-DIP SA

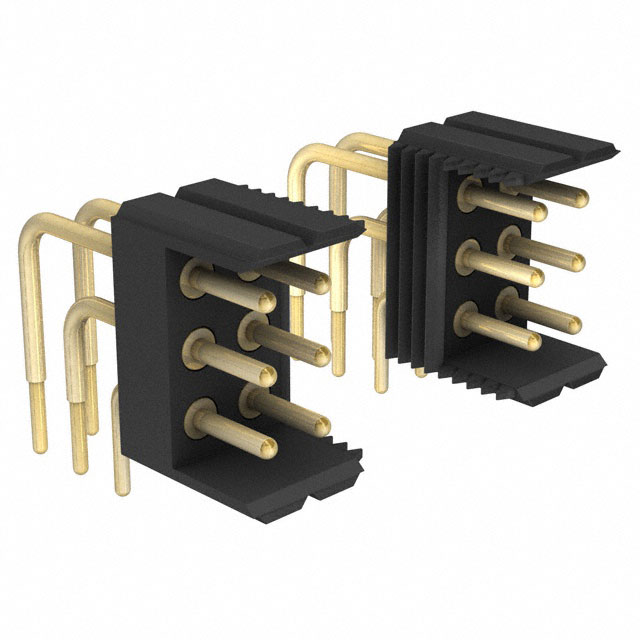

CONN HEADER R/A 21POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

804-V3-021-22-002101

Active

PRECI-DIP SA

CONN HEADER R/A 21POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	804-V3-021-22-002101

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Length - Mating	0.141 in
Contact Length - Mating	3.6 mm
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.372 in
Insulation Height [z]	9.44 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	21
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

804-V3 Series

...

Part	Number of Positions	Shrouding	Contact Finish - Mating	Contact Shape	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Insulation Color	Current Rating (Amps)	Contact Material	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Connector Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Fastening Type	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Insulation Material	Termination	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Voltage Rating	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]
PRECI-DIP SA 804-V3-051-10-193101	51	Unshrouded	Gold	Circular	3 mm	0.118 in	UL94 V-0	Black	3 A	Brass	3	-55 °C	125 °C	2.54 mm	0.1 in	0.835 "	21.21 mm	Header	Tin	0.1 in	2.54 mm	Push-Pull	Through Hole	29.5 Áin	0.75 Ám	3.56 mm	0.14 in	Male Pin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	All	27.75 mm	1.093 in	150 VDC
PRECI-DIP SA 804-V3-033-12-002101	33	Unshrouded	Gold	Circular	3.6 mm	0.141 in	UL94 V-0	Black	3 A	Brass	3	-55 °C	125 °C	2.54 mm	0.1 in		6.91 mm	Header	Tin	0.1 in	2.54 mm	Push-Pull	Through Hole	29.5 Áin	0.75 Ám			Male Pin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	All	9.8 mm	0.386 in	150 VDC	0.118 in	3 mm	0.272 "
PRECI-DIP SA 804-V3-060-6B-002101	60	Unshrouded	Gold	Circular	3.6 mm	0.141 in	UL94 V-0	Black	3 A	Bronze	3	-55 °C	125 °C	2.54 mm	0.1 in		6.91 mm	Header	Tin	0.1 in	2.54 mm	Push-Pull	Through Hole	29.5 Áin	0.75 Ám		0.11 in	Male Pin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Press-Fit Solder	All	9.6 mm	0.378 in	150 VDC		2.79 mm	0.272 "
PRECI-DIP SA 804-V3-066-10-193101	66	Unshrouded	Gold	Circular	3 mm	0.118 in	UL94 V-0	Black	3 A	Brass	3	-55 °C	125 °C	2.54 mm	0.1 in	0.835 "	21.21 mm	Header	Tin	0.1 in	2.54 mm	Push-Pull	Through Hole	29.5 Áin	0.75 Ám	3.56 mm	0.14 in	Male Pin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	All	27.75 mm	1.093 in	150 VDC
PRECI-DIP SA 804-V3-093-6B-002101	93	Unshrouded	Gold	Circular	3.6 mm	0.141 in	UL94 V-0	Black	3 A	Bronze	3	-55 °C	125 °C	2.54 mm	0.1 in		6.91 mm	Header	Tin	0.1 in	2.54 mm	Push-Pull	Through Hole	29.5 Áin	0.75 Ám		0.11 in	Male Pin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Press-Fit Solder	All	9.6 mm	0.378 in	150 VDC		2.79 mm	0.272 "
PRECI-DIP SA 804-V3-045-10-193101	45	Unshrouded	Gold	Circular	3 mm	0.118 in	UL94 V-0	Black	3 A	Brass	3	-55 °C	125 °C	2.54 mm	0.1 in	0.835 "	21.21 mm	Header	Tin	0.1 in	2.54 mm	Push-Pull	Through Hole	29.5 Áin	0.75 Ám	3.56 mm	0.14 in	Male Pin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	All	27.75 mm	1.093 in	150 VDC
PRECI-DIP SA 804-V3-093-10-193101	93	Unshrouded	Gold	Circular	3 mm	0.118 in	UL94 V-0	Black	3 A	Brass	3	-55 °C	125 °C	2.54 mm	0.1 in	0.835 "	21.21 mm	Header	Tin	0.1 in	2.54 mm	Push-Pull	Through Hole	29.5 Áin	0.75 Ám	3.56 mm	0.14 in	Male Pin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	All	27.75 mm	1.093 in	150 VDC
PRECI-DIP SA 804-V3-021-22-002101	21	Unshrouded	Gold	Circular	3.6 mm	0.141 in	UL94 V-0	Black	3 A	Brass	3	-55 °C	125 °C	2.54 mm	0.1 in			Header	Tin	0.1 in	2.54 mm	Push-Pull	Through Hole Right Angle	29.5 Áin	0.75 Ám		0.126 in	Male Pin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	All			150 VDC		3.2 mm	0.372 in	9.44 mm
PRECI-DIP SA 804-V3-069-10-193101	69	Unshrouded	Gold	Circular	3 mm	0.118 in	UL94 V-0	Black	3 A	Brass	3	-55 °C	125 °C	2.54 mm	0.1 in	0.835 "	21.21 mm	Header	Tin	0.1 in	2.54 mm	Push-Pull	Through Hole	29.5 Áin	0.75 Ám	3.56 mm	0.14 in	Male Pin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	All	27.75 mm	1.093 in	150 VDC
PRECI-DIP SA 804-V3-066-22-002101	66	Unshrouded	Gold	Circular	3.6 mm	0.141 in	UL94 V-0	Black	3 A	Brass	3	-55 °C	125 °C	2.54 mm	0.1 in			Header	Tin	0.1 in	2.54 mm	Push-Pull	Through Hole Right Angle	29.5 Áin	0.75 Ám		0.126 in	Male Pin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	All			150 VDC		3.2 mm	0.372 in	9.44 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	140	$ 6.07

Description

General part information

804-V3 Series

Connector Header Through Hole, Right Angle 21 position 0.100" (2.54mm)
