2010W

Active

Curtis Industries

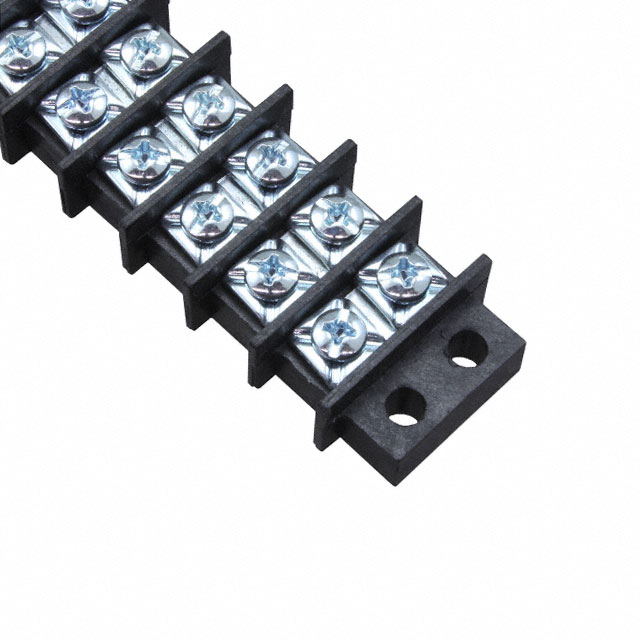

CONN BARRIER STRP 10CIRC 0.438"

Search across all available documentation for this part.

Active

Curtis Industries

CONN BARRIER STRP 10CIRC 0.438"

Technical Specifications

Parameters and characteristics for this part

Specification	2010W

Barrier Type	2 Wall (Dual)
Bottom Termination	Closed
Current Rating (Amps)	30 A
Features	Flange
Material - Insulation	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	10
Number of Rows	2
Number of Wire Entries	20
Operating Temperature	110 °C
Pitch [x]	11.12 mm
Pitch [x]	0.438 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws with Captive Plate
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	10 AWG

Part	Terminal Screw Material	Top Termination	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Block Type	Mounting Type	Pitch [x]	Pitch [x]	Bottom Termination	Features	Material - Insulation	Operating Temperature	Current Rating (Amps)	Number of Circuits	Material Flammability Rating	Number of Rows	Barrier Type	Number of Wire Entries
Curtis Industries 2010W	Steel	Screws with Captive Plate	22 AWG	10 AWG	Barrier Block	Chassis Panel	11.12 mm	0.438 in	Closed	Flange	Polyphenylene Oxide (PPO)	110 °C	30 A	10	UL94 V-0	2	2 Wall (Dual)	20
Curtis Industries 2010-YSY		Screws	22 AWG	10 AWG	Barrier Block	Chassis Panel Through Hole	11.12 mm	0.438 in	Solder Tab	Flange	Polyphenylene Oxide (PPO)	110 °C	30 A	10	UL94 V-0	2	2 Wall (Dual)	20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Circuit 0.438" (11.12mm) Barrier Block Connector Screws with Captive Plate
