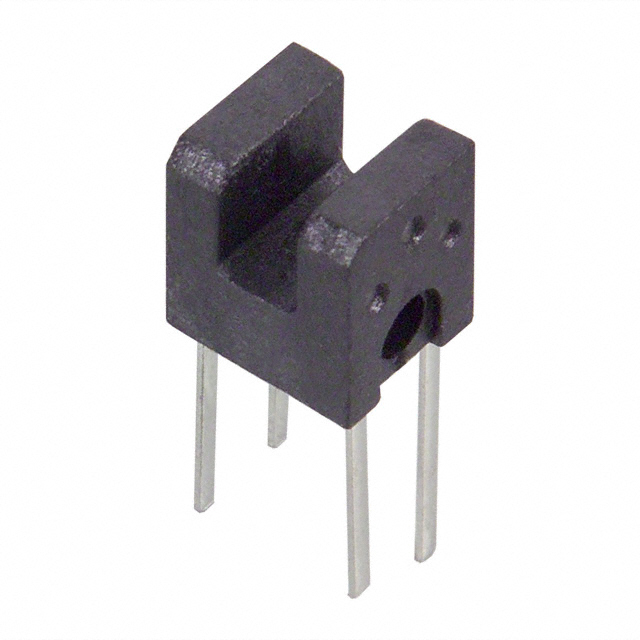

RPI-243

Active

Rohm Semiconductor

PHOTOINTERRUPTER DOUBLE MOLD TYPE

Search across all available documentation for this part.

Active

Rohm Semiconductor

PHOTOINTERRUPTER DOUBLE MOLD TYPE

Technical Specifications

Parameters and characteristics for this part

Specification	RPI-243

Current - Collector (Ic) (Max) [Max]	30 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Output Configuration	Phototransistor
Package / Case	PCB Mount
Response Time	10 µs
Sensing Distance	0.079 in
Sensing Distance	2 mm
Sensing Method	Through-Beam
Type	Unamplified
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Photointerrupter Double Mold Type

Part	Response Time	Current - DC Forward (If) (Max)	Package / Case	Sensing Distance	Sensing Distance	Sensing Method	Mounting Type	Output Configuration	Current - Collector (Ic) (Max) [Max]	Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]
Rohm Semiconductor RPI-243	10 µs	50 mA	PCB Mount	0.079 in	2 mm	Through-Beam	Through Hole	Phototransistor	30 mA	Unamplified	30 V	-25 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ROHM's optical sensors serve as eyes to monitor changes of any motions, and comply with customer's day-to-day diversifying requests.
