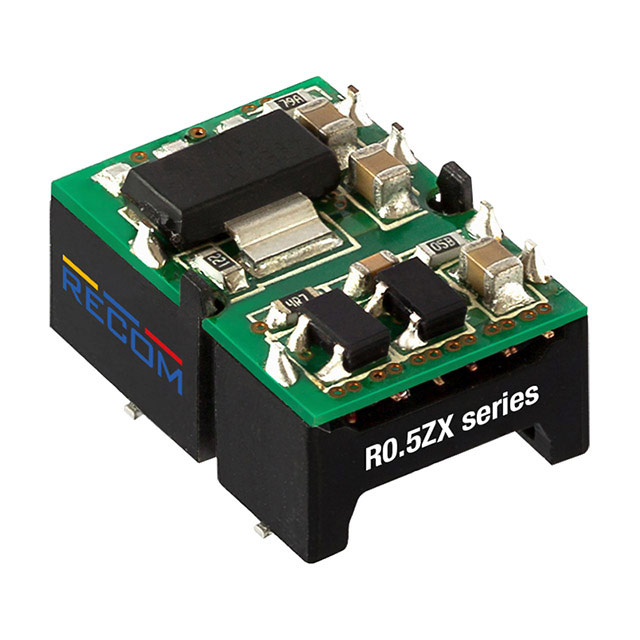

R0.5ZX-0505/P-R

Active

RECOM Power

ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, DIP, 1:1, 500 MW, 1 OUTPUT, 5 V

Search across all available documentation for this part.

Active

RECOM Power

ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, DIP, 1:1, 500 MW, 1 OUTPUT, 5 V

Technical Specifications

Parameters and characteristics for this part

Isolated DC/DC Converters - SMD 0.5W 05Vin 05Vout 100mA

Part	Approval Agency	Applications	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Number of Outputs	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Efficiency	Current - Output (Max) [Max]	Type	Features	Mounting Type	Package / Case	Voltage - Input (Max) [Max]	Power (Watts)
RECOM Power R0.5ZX-0505/P-TRAY	CB cURus	ITE (Commercial)	4.75 V	8.5 mm	15.2 mm	0.33 in	0.6 in	10.7 mm	0.42 "	1	5 V	-40 °C	100 °C	1000 V	71 %	100 mA	Isolated Module	OCP OVP SCP	Surface Mount	10-SMD Module 6 Leads	5.25 V	0.5 W
RECOM Power R0.5ZX-0505/HP-TRAY	CB cURus	ITE (Commercial)	4.75 V	8.5 mm	15.2 mm	0.33 in	0.6 in	10.7 mm	0.42 "	1	5 V	-40 °C	100 °C	2000 V	71 %	100 mA	Isolated Module	OCP OVP SCP	Surface Mount	10-SMD Module 6 Leads	5.25 V	0.5 W
RECOM Power R0.5ZX-0505/HP-R	CB cURus	ITE (Commercial)	4.75 V	8.5 mm	15.2 mm	0.33 in	0.6 in	10.7 mm	0.42 "	1	5 V	-40 °C	100 °C	2000 V	71 %	100 mA	Isolated Module	OCP OTP SCP	Surface Mount	10-SMD Module 6 Leads	5.25 V	0.5 W
RECOM Power R0.5ZX-0505/P-R	CB cURus	ITE (Commercial)	4.75 V	8.5 mm	15.2 mm	0.33 in	0.6 in	10.7 mm	0.42 "	1	5 V	-40 °C	100 °C	1000 V	71 %	100 mA	Isolated Module	OCP OVP SCP	Surface Mount	10-SMD Module 6 Leads	5.25 V	0.5 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated DC/DC Converters - SMD 0.5W 05Vin 05Vout 100mA
