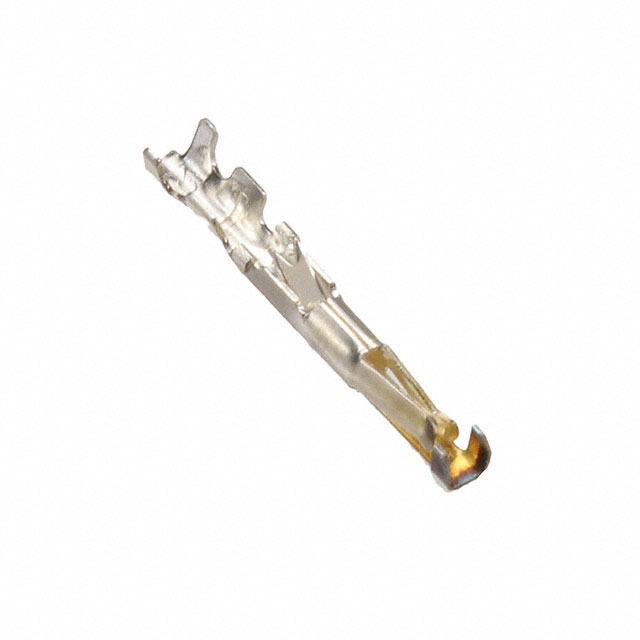

HR12-SC-212

Active

Hirose Electric USA, Inc.

CONTACT SOCKET 26-30AWG CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHR212 Series Datasheet

HR12-SC-212

Active

Hirose Electric USA, Inc.

CONTACT SOCKET 26-30AWG CRIMP

Deep-Dive with AI

DocumentsHR212 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HR12-SC-212

Contact Finish	Silver
Contact Material	Phosphor Bronze
Contact Size	1 mm
Contact Termination	Crimp
Contact Type	Socket
Termination Finish	Phosphor Bronze
Type	Stamped, Signal
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	26 AWG

HR12 Series

Part	Contact Finish	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Termination Finish	Contact Material	Contact Type	Contact Termination	Contact Size	Features	Material Flammability Rating	Primary Material	Mounting Type	Shell Material	Orientation	Voltage Rating	Termination	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shielding	Color	Number of Positions	Mounting Feature	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Shape	Housing Color	Note	Insert Material
Hirose Electric USA, Inc. HR12-SC-213	Tin	Signal Stamped	30 AWG	26 AWG	Phosphor Bronze	Phosphor Bronze	Socket	Crimp	1 mm
Hirose Electric USA, Inc. HR12-SC-111	Gold	Signal Stamped	30 AWG	26 AWG	Phosphor Bronze	Phosphor Bronze	Socket	Crimp	1 mm	Insulation Support
Hirose Electric USA, Inc. HR12-SC-212	Silver	Signal Stamped	30 AWG	26 AWG	Phosphor Bronze	Phosphor Bronze	Socket	Crimp	1 mm
Hirose Electric USA, Inc. HR12-10R-8SDL(71)						Phosphor Bronze				Ground	UL94 V-0	Plastic	Through Hole Right Angle	Polybutylene Terephthalate (PBT)	Keyed	100 VAC 140 VDC	Solder	10	-15 °C	60 °C	Receptacle Female Sockets	Shielded	Black	8	Flange	Snap-In
Hirose Electric USA, Inc. HR12-10R-8SD(73)						Phosphor Bronze				Ground	UL94 V-0	Plastic	Panel Mount Through Hole	Polybutylene Terephthalate (PBT)	Keyed	100 VAC 140 VDC	Solder	10	-15 °C	60 °C	Receptacle Female Sockets	Shielded	Black	8	Bulkhead - Rear Side Nut	Snap-In	0.203 Ám	8 Áin	Gold
Hirose Electric USA, Inc. HR12-14RA-20SC(01)		For Female Sockets					Crimp		1 mm		UL94 V-0			Polybutylene Terephthalate (PBT)	Keyed			14	-15 °C	60 °C	Receptacle Housing	Shielded		20	Flange	Snap-In				Circular	Black	Contacts Not Included	Polybutylene Terephthalate (PBT)
Hirose Electric USA, Inc. HR12-14R-20SDL															Keyed	100 VAC 140 VDC		14			Receptacle Female Sockets	Shielded		20		Snap-In
Hirose Electric USA, Inc. HR12-14RA-20SDL						Phosphor Bronze				Board Lock Ground	UL94 V-0	Plastic	Through Hole Right Angle	Polybutylene Terephthalate (PBT)	Keyed	100 VAC 140 VDC	Solder	14	-15 °C	60 °C	Receptacle Female Sockets	Shielded	Black	20	Flange	Snap-In			Silver
Hirose Electric USA, Inc. HR12-10RC-10SDL(02)															Keyed	100 VAC 140 VDC		10			Receptacle Female Sockets	Shielded		10		Snap-In
Hirose Electric USA, Inc. HR12-10RC-10SDL(71)															Keyed	100 VAC 140 VDC		10			Receptacle Female Sockets	Shielded		10		Snap-In

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.24
		10	$ 0.20
		25	$ 0.18
		50	$ 0.17
		100	$ 0.16
		250	$ 0.14
		500	$ 0.13
		1000	$ 0.11
		2500	$ 0.10
	Tape & Reel (TR)	10000	$ 0.09
		20000	$ 0.08
		30000	$ 0.08
		50000	$ 0.08

Description

General part information

HR12 Series

Socket Contact 26-30 AWG Size 1.0mm Crimp Silver

Documents

Technical documentation and resources

HR212 Series

Datasheet
