07100-SP024

Active

Qualtek

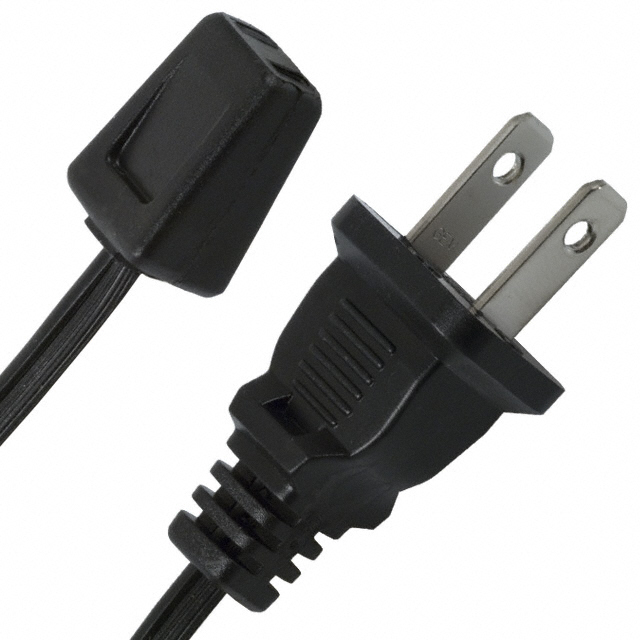

POWER CORD W/PLUG STRAIGHT 24"

Search across all available documentation for this part.

Active

Qualtek

POWER CORD W/PLUG STRAIGHT 24"

Technical Specifications

Parameters and characteristics for this part

Specification	07100-SP024

1st Connector	Fan Terminal Receptacle 180°, Straight
2nd Connector	NEMA 1-15 Plug
Approval Agency Marking	UL, cUL
Cord Type	SPT-1
Current Rating (Amps)	10 A
Fits Terminal Size [x]	4.5
Fits Terminal Size [y]	2.5
Length [x]	609.6 mm
Length [x]	24 in
Number of Conductors	2
Operating Temperature	105 C
Style	Female Receptacle to Male Plug
Voltage Rating	125 VDC
Wire Gauge	18 AWG

Part	1st Connector	Wire Gauge	Voltage Rating	Cord Type	Length	Length	Current Rating (Amps)	Number of Conductors	Approval Agency Marking	Fits Terminal Size [y]	Fits Terminal Size [x]	Operating Temperature	Style	2nd Connector	Length [x]	Length [x]
Qualtek 07100-SP036	Fan Terminal Receptacle 180° Straight	18 AWG	125 VDC	SPT-1	91.44 cm	36 in	10 A	2	cUL UL	2.5	4.5	105 C	Female Receptacle to Male Plug	NEMA 1-15 Plug
Qualtek 07100-SP024	Fan Terminal Receptacle 180° Straight	18 AWG	125 VDC	SPT-1			10 A	2	cUL UL	2.5	4.5	105 C	Female Receptacle to Male Plug	NEMA 1-15 Plug	609.6 mm	24 in
Qualtek 07100-72	Fan Terminal Receptacle 180° Straight	18 AWG	125 VDC	SPT-1	1.83 m	72 in	10 A	2	cUL UL	2.5	4.5	105 C	Female Receptacle to Cable	Open Wires
Qualtek 07100-40	Fan Terminal Receptacle 180° Straight	18 AWG	125 VDC	SPT-1	1.02 m	40 in	10 A	2	cUL UL	2.5	4.5	105 C	Female Receptacle to Cable	Open Wires
Qualtek 07100-60	Fan Terminal Receptacle 180° Straight	18 AWG	125 VDC	SPT-1	1.52 m	5 '	10 A	2	cUL UL	2.5	4.5	105 C	Female Receptacle to Cable	Open Wires
Qualtek 07100-80	Fan Terminal Receptacle 180° Straight	18 AWG	125 VDC	SPT-1	2.03 m	80 "	10 A	2	cUL UL	2.5	4.5	105 C	Female Receptacle to Cable	Open Wires

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Power Cord Fan Terminal Receptacle 180°, Straight 24.0" (609.6mm) NEMA 1-15 Plug
