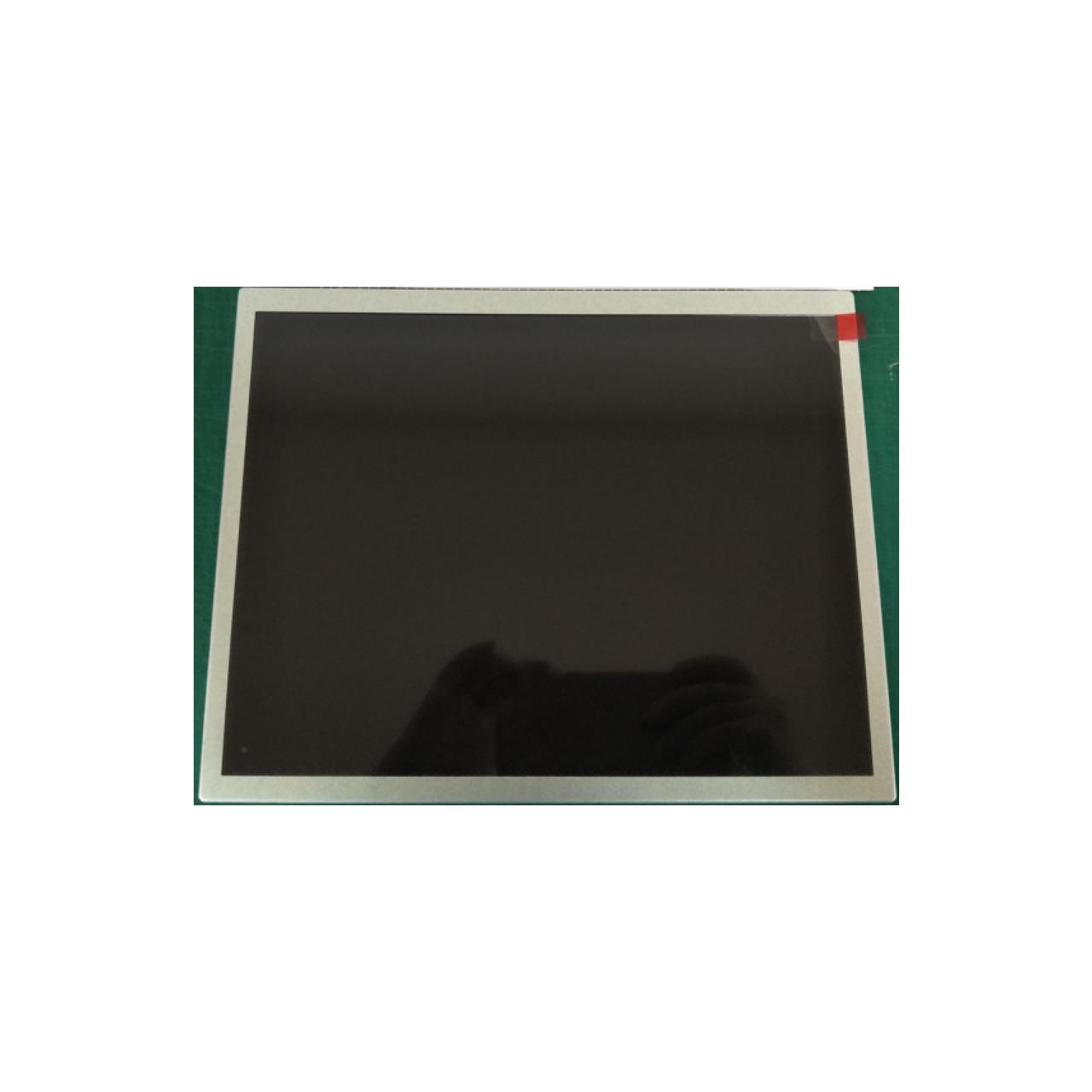

DMT104XGHLNT0-2B
ActiveDensitron
MITSUBISHI REPLACE AA104XG12
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DMT104XGHLNT0-2B |
|---|---|
| Background Color | Black |
| Backlight | LED - White |
| Diagonal Screen Size | 10.4 in |
| Diagonal Screen Size | 264.16 mm |
| Display Mode | Transmissive |
| Display Type | TFT - Color LCD |
| Dot Pitch [x] | 0.21 mm |
| Dot Pitch [y] | 0.21 mm |
| Dot Pixels [x] | 1024 |
| Dot Pixels [y] | 768 |
| Dot Size [x] | 0.07 mm |
| Dot Size [y] | 0.21 mm |
| Graphics Color | Green, Red, Blue |
| Interface | LVDS |
| Viewing Area [x] | 215.4 mm |
| Viewing Area [y] | 161.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 169.37 | |
| 101 | $ 162.00 | |||
| 301 | $ 159.06 | |||
| 501 | $ 157.58 | |||
| 1001 | $ 154.64 | |||
Description
General part information
DMT104XGHLNT0-2B
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color LCD LVDS 10.4" (264.16mm) 1024 x 768 (XGA)
