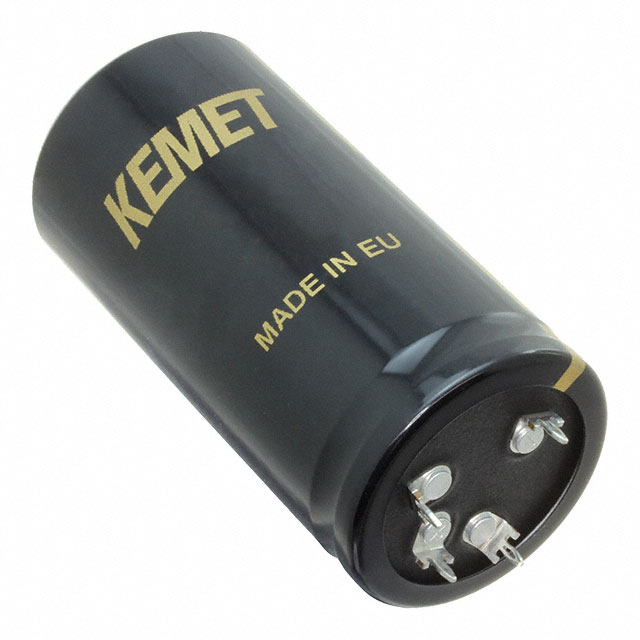

ALF20G271EB400

Active

KEMET

CAP ALUM 270UF 20% 400V PRESS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ALF20G271EB400

Active

KEMET

CAP ALUM 270UF 20% 400V PRESS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALF20G271EB400

Applications	General Purpose
Capacitance	270 µF
ESR (Equivalent Series Resistance)	441 mOhm
Impedance	284 mOhms
Lead Spacing	25 mm
Lead Spacing	0.984 "
Lifetime @ Temp.	18000 Hrs
Mounting Type	Through Hole, Press-Fit
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Press-Fit - 5 Lead
Polarization	Polar
Ripple Current @ High Frequency	3.67 A
Ripple Current @ Low Frequency	1.85 A
Size / Dimension [diameter]	1.575 "
Size / Dimension [diameter]	40 mm
Tolerance	20 %
Voltage - Rated	400 V

ALF20G Series

Part	Ripple Current @ High Frequency	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Mounting Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Tolerance	Impedance	Package / Case	Capacitance	Polarization	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ALF20G332EL200	9.17 A	18000 Hrs	1.575 "	40 mm	46 mOhm	Through Hole Press-Fit	General Purpose	85 °C	-40 °C	7.83 A	25 mm	0.984 "	82 mm	3.228 in	200 V	20 %	37 mOhms	Radial Can - Press-Fit - 5 Lead	3.3 mF	Polar
KEMET ALF20G823EP040	13.44 A	18000 Hrs	1.575 "	40 mm	18 mOhm	Through Hole Press-Fit	General Purpose	85 °C	-40 °C	12.63 A	25 mm	0.984 "			40 V	20 %	17 mOhms	Radial Can - Press-Fit - 5 Lead	82000 µF	Polar	107 mm	4.213 in
KEMET ALF20G271EB400	3.67 A	18000 Hrs	1.575 "	40 mm	441 mOhm	Through Hole Press-Fit	General Purpose	85 °C	-40 °C	1.85 A	25 mm	0.984 "			400 V	20 %	284 mOhms	Radial Can - Press-Fit - 5 Lead	270 µF	Polar
KEMET ALF20G221EC550	3.01 A	18000 Hrs	1.575 "	40 mm	1.584 Ohm	Through Hole Press-Fit	General Purpose	85 °C	-40 °C	1.84 A	25 mm	0.984 "	37 mm	1.457 in	550 V	20 %	1.38 Ohms	Radial Can - Press-Fit - 5 Lead	220 µF	Polar
KEMET ALF20G333EF035	10.03 A	18000 Hrs	1.575 "	40 mm	42 mOhm	Through Hole Press-Fit	General Purpose	85 °C	-40 °C	7.16 A	25 mm	0.984 "	52 mm	2.047 in	35 V	20 %	38 mOhms	Radial Can - Press-Fit - 5 Lead	33000 µF	Polar
KEMET ALF20G472EP200	11.73 A	18000 Hrs	1.575 "	40 mm	45 mOhm	Through Hole Press-Fit	General Purpose	85 °C	-40 °C	8.08 A	25 mm	0.984 "			200 V	20 %	32 mOhms	Radial Can - Press-Fit - 5 Lead	4700 µF	Polar	107 mm	4.213 in
KEMET ALF20G152EG250	6.58 A	18000 Hrs	1.575 "	40 mm	89 mOhm	Through Hole Press-Fit	General Purpose	85 °C	-40 °C	5.29 A	25 mm	0.984 "	57 mm	2.244 "	250 V	20 %	69 mOhms	Radial Can - Press-Fit - 5 Lead	1.5 mF	Polar
KEMET ALF20G471EE400	5.49 A	18000 Hrs	1.575 "	40 mm	258 mOhm	Through Hole Press-Fit	General Purpose	85 °C	-40 °C	3 A	25 mm	0.984 "	47 mm	1.85 in	400 V	20 %	168 mOhms	Radial Can - Press-Fit - 5 Lead	470 µF	Polar
KEMET ALF20G681EB250	3.56 A	18000 Hrs	1.575 "	40 mm	187 mOhm	Through Hole Press-Fit	General Purpose	85 °C	-40 °C	2.79 A	25 mm	0.984 "			250 V	20 %	144 mOhms	Radial Can - Press-Fit - 5 Lead	680 µF	Polar
KEMET ALF20G391EF550	4.33 A	18000 Hrs	1.575 "	40 mm	894 mOhm	Through Hole Press-Fit	General Purpose	85 °C	-40 °C	2.67 A	25 mm	0.984 "	52 mm	2.047 in	550 V	20 %	780 mOhms	Radial Can - Press-Fit - 5 Lead	390 µF	Polar

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	216	$ 6.39

Description

General part information

ALF20G Series

270 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Press-Fit - 5 Lead 441mOhm @ 100Hz 18000 Hrs @ 85°C
