EVQ3369-R-01A

Active

MONOLITHIC POWER SYSTEMS (MPS)

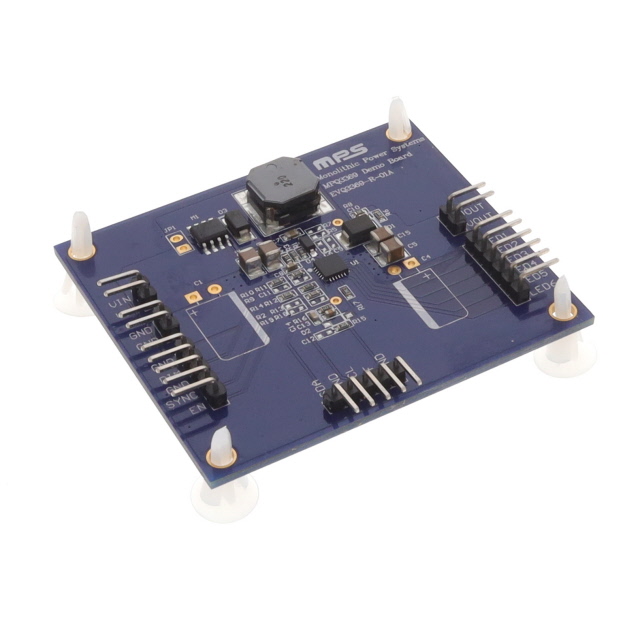

EVAL BOARD FOR MPQ3369

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MPQ3369

Technical Specifications

Parameters and characteristics for this part

Part	Outputs and Type	Supplied Contents	Features	Current - Output / Channel	Utilized IC / Part	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Supply (Max) [Max]	Voltage - Supply (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Frequency	Voltage - Output	Qualification	Supplier Device Package	Number of Outputs	Mounting Type	Grade	Dimming	Package / Case	Package / Case [custom]	Package / Case [x]	Topology
MONOLITHIC POWER SYSTEMS (MPS) EVQ3369-R-01A	6 Outputs	Board(s)	Dimmable	100 mA	MPQ3369	3.5 V	36 V
MONOLITHIC POWER SYSTEMS (MPS) MPQ3369GF-AEC1-Z				100 mA				36 V	3.5 V	-40 °C	125 ¯C	DC DC Regulator	2.2 MHz	5 V	AEC-Q100	28-TSSOP-EP	6	Surface Mount	Automotive	Analog PWM	28-TSSOP Exposed Pad	4.4 mm	0.173 in	Step-Up (Boost)
MONOLITHIC POWER SYSTEMS (MPS) MPQ3369GR-AEC1-Z				100 mA				36 V	3.5 V	-40 °C	125 ¯C	DC DC Regulator	2.2 MHz	5 V	AEC-Q100	24-QFN (4x4)	6	Surface Mount	Automotive	Analog PWM	24-VFQFN Exposed Pad			Step-Up (Boost)
MONOLITHIC POWER SYSTEMS (MPS) MPQ3369GR-AEC1-P				100 mA				36 V	3.5 V	-40 °C	125 ¯C	DC DC Regulator	2.2 MHz	5 V	AEC-Q100	24-QFN (4x4)	6	Surface Mount	Automotive	Analog PWM	24-VFQFN Exposed Pad			Step-Up (Boost)
MONOLITHIC POWER SYSTEMS (MPS) MPQ3369GF-AEC1-P				100 mA				36 V	3.5 V	-40 °C	125 ¯C	DC DC Regulator	2.2 MHz	5 V	AEC-Q100	28-TSSOP-EP	6	Surface Mount	Automotive	Analog PWM	28-TSSOP Exposed Pad	4.4 mm	0.173 in	Step-Up (Boost)
MONOLITHIC POWER SYSTEMS (MPS) EVQ3369-R-00A	6 Outputs	Board(s)	Dimmable	50 mA	MPQ3369	3.5 V	36 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 100.00

General part information

MPQ3369 - 6 Non-Isolated Outputs pval(5) LED Driver Evaluation Board
