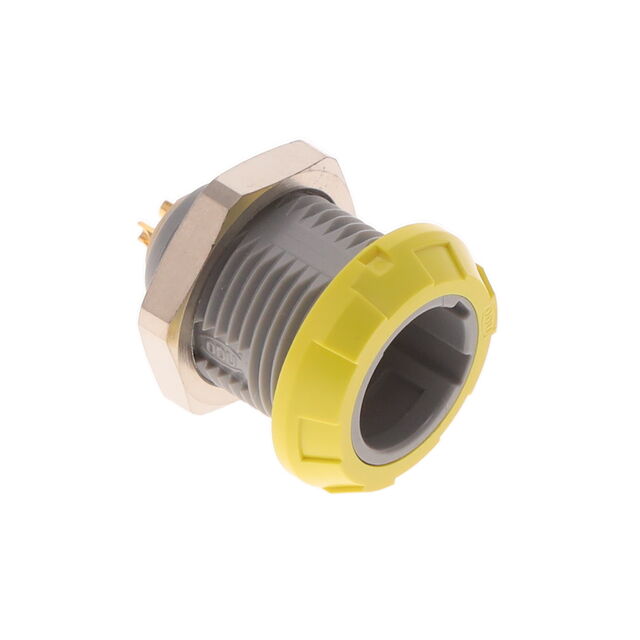

G11MC7-P02LPH0-0040

Active

ODU

CONN RCPT FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

G11MC7-P02LPH0-0040

Active

ODU

CONN RCPT FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G11MC7-P02LPH0-0040

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Color	Gray, Yellow
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	14 A
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-50 °C
Orientation	C
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shielding	Unshielded

G11MC7-P Series

Part	Color	Ingress Protection	Insert Material	Fastening Type	Current Rating (Amps)	Connector Type	Shell Material	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Mounting Feature	Number of Positions	Primary Material	Shell Size - Insert	Contact Finish - Mating	Orientation	Shielding
ODU G11MC7-P02LPH0-0020	Gray Red	IP50	Polyetheretherketone (PEEK)	Detent Lock Push-Pull	14 A	Receptacle Female Sockets	Polysulfone (PSU)	Industrial Medical Military Testing Equipment & Measurement	-50 °C	120 °C	Brass	Bulkhead - Rear Side Nut	2	Plastic	1	Gold	C	Unshielded
ODU G11MC7-P08LFD0-0050	Gray Green	IP50	Polyetheretherketone (PEEK)	Detent Lock Push-Pull	3.85 A	Receptacle Female Sockets	Polysulfone (PSU)	Industrial Medical Military Testing Equipment & Measurement	-50 °C	120 °C	Brass	Bulkhead - Rear Side Nut	8	Plastic	1	Gold	C	Unshielded
ODU G11MC7-P07LFD0-0050	Gray Green	IP50	Polyetheretherketone (PEEK)	Detent Lock Push-Pull	4.55 A	Receptacle Female Sockets	Polysulfone (PSU)	Industrial Medical Military Testing Equipment & Measurement	-50 °C	120 °C	Brass	Bulkhead - Rear Side Nut	7	Plastic	1	Gold	C	Unshielded
ODU G11MC7-P04LJG0-0050	Gray Green	IP50	Polyetheretherketone (PEEK)	Detent Lock Push-Pull	10 A	Receptacle Female Sockets	Polysulfone (PSU)	Industrial Medical Military Testing Equipment & Measurement	-50 °C	120 °C	Brass	Bulkhead - Rear Side Nut	4	Plastic	1	Gold	C	Unshielded
ODU G11MC7-P04LJG0-0080		IP50	Polyetheretherketone (PEEK)	Detent Lock Push-Pull	10 A	Receptacle Female Sockets	Polysulfone (PSU)	Industrial Medical Military Testing Equipment & Measurement	-50 °C	120 °C	Brass	Bulkhead - Rear Side Nut	4	Plastic	1	Gold	C	Unshielded
ODU G11MC7-P02LPH0-0040	Gray Yellow	IP50	Polyetheretherketone (PEEK)	Detent Lock Push-Pull	14 A	Receptacle Female Sockets	Polysulfone (PSU)	Industrial Medical Military Testing Equipment & Measurement	-50 °C	120 °C	Brass	Bulkhead - Rear Side Nut	2	Plastic	1	Gold	C	Unshielded
ODU G11MC7-P14LCC0-0020	Gray Red	IP50	Polyetheretherketone (PEEK)	Detent Lock Push-Pull	2.5 A	Receptacle Female Sockets	Polysulfone (PSU)	Industrial Medical Military Testing Equipment & Measurement	-50 °C	120 °C	Brass	Bulkhead - Rear Side Nut	14	Plastic	1	Gold	C	Unshielded
ODU G11MC7-P06LFD0-0080		IP50	Polyetheretherketone (PEEK)	Detent Lock Push-Pull	4.55 A	Receptacle Female Sockets	Polysulfone (PSU)	Industrial Medical Military Testing Equipment & Measurement	-50 °C	120 °C	Brass	Bulkhead - Rear Side Nut	6	Plastic	1	Gold	C	Unshielded
ODU G11MC7-P07LFD0-0020	Gray Red	IP50	Polyetheretherketone (PEEK)	Detent Lock Push-Pull	4.55 A	Receptacle Female Sockets	Polysulfone (PSU)	Industrial Medical Military Testing Equipment & Measurement	-50 °C	120 °C	Brass	Bulkhead - Rear Side Nut	7	Plastic	1	Gold	C	Unshielded
ODU G11MC7-P09LCC0-0020	Gray Red	IP50	Polyetheretherketone (PEEK)	Detent Lock Push-Pull	2.75 A	Receptacle Female Sockets	Polysulfone (PSU)	Industrial Medical Military Testing Equipment & Measurement	-50 °C	120 °C	Brass	Bulkhead - Rear Side Nut	9	Plastic	1	Gold	C	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.98
		10	$ 16.45
		25	$ 15.59
		50	$ 15.37
		100	$ 13.56
		250	$ 12.66
		500	$ 12.38

Description

General part information

G11MC7-P Series

2 Position Circular Connector Receptacle, Female Sockets Solder Cup
