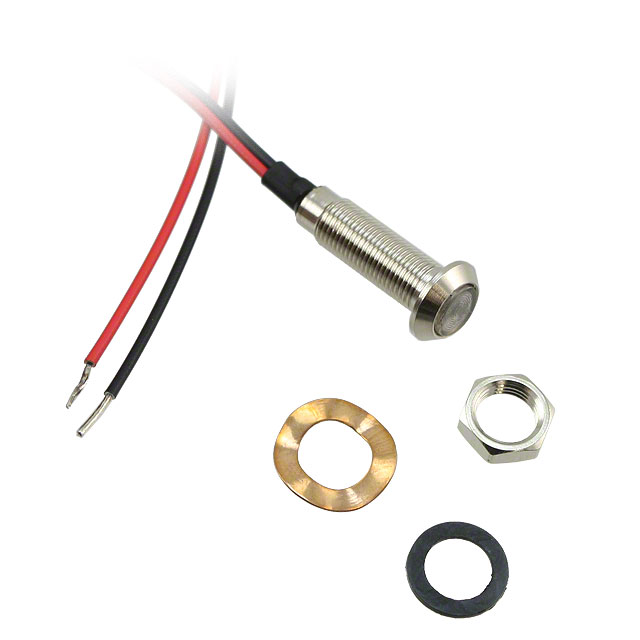

PM5-B5R28V
ObsoleteBivar Inc.
PANEL MOUNT ASSEM 5MM RED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PM5-B5R28V |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Red |
| Lens Color | Red |
| Lens Size [diameter] | 5.1 mm |
| Lens Transparency | Fresnel |
| Millicandela Rating | 39 mcd |
| Panel Cutout Dimensions | 0.2 in |
| Panel Cutout Dimensions | 5.08 mm |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Wire Leads |
| Termination Style | 5.9 " |
| Type | LED |
| Viewing Angle | 120 ° |
| Voltage [Max] | 28 V |
| Voltage [Min] | 24 V |
| Wavelength - Peak | 660 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 37.30 | |
| 10 | $ 29.21 | |||
Description
General part information
PM5-B5R28 Series
LED Panel Indicator Red Fresnel 120° 24V ~ 28V 20mA Wire Leads - 5.9" (150.00mm)
