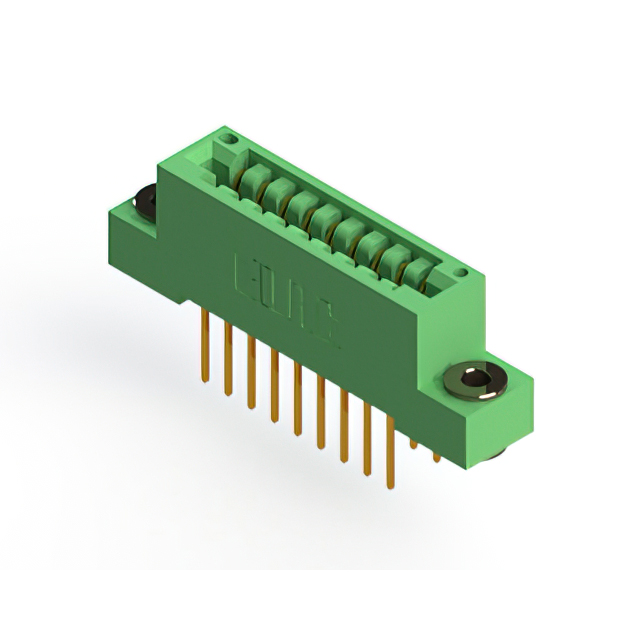

346-018-526-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 18POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
346-018-526-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 18POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-018-526-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 18 |
| Number of Positions/Bay/Row [custom] | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
346-018 Series
...
| Part | Read Out | Contact Material | Pitch [x] | Pitch [x] | Contact Finish | Termination | Features | Card Type | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Gender | Mounting Type | Material - Insulation | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Contact Type | Number of Positions/Bay/Row [custom] | Number of Rows | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | Copper Alloy | 0.125 in | 3.18 mm | Gold | Wire Wrap | Card Guides | Non Specified - Dual Edge | 2 | 10 Áin | 0.25 Ám | Female | Through Hole | Polyester Thermoplastic | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Cantilever | 9 | 2 | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | ||||
EDAC Inc. | Single | Copper Alloy | 0.125 in | 3.18 mm | Gold | Wire Wrap | Non Specified - Single Edge | 1 | 10 Áin | 0.25 Ám | Female | Through Hole | Polyester Thermoplastic | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Cantilever | 18 | 1 | Floating Bobbin Flush Mount | -40 °C | 105 ░C | 0.116 in | 2.95 mm | |||
EDAC Inc. | Dual | Copper Alloy | 0.125 in | 3.18 mm | Gold | Wire Wrap | Non Specified - Dual Edge | 2 | 10 Áin | 0.25 Ám | Female | Through Hole | Polyester Thermoplastic | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Cantilever | 9 | 2 | Floating Bobbin Flush Mount | -40 °C | 105 ░C | 0.116 in | 2.95 mm | |||
EDAC Inc. | Dual | Copper Alloy | 0.125 in | 3.18 mm | Gold | Solder | Non Specified - Dual Edge | 2 | 10 Áin | 0.25 Ám | Female | Through Hole | Polyester Thermoplastic | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Cantilever | 9 | 2 | Flush Mount Side Opening Unthreaded | -40 °C | 105 ░C | 0.128 " | 3.25 mm | |||
EDAC Inc. | Dual | Copper Alloy | 0.125 in | 3.18 mm | Gold | Solder Wire Wrap | Non Specified - Dual Edge | 2 | 10 Áin | 0.25 Ám | Female | Through Hole Right Angle | Polyester Thermoplastic | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Cantilever | 9 | 2 | Side Mount Opening Unthreaded | -40 °C | 105 ░C | 3.25 mm | 0.128 in | |||
EDAC Inc. | Single | Copper Alloy | 0.125 in | 3.18 mm | Gold | Solder | Non Specified - Single Edge | 1 | 10 Áin | 0.25 Ám | Female | Through Hole | Polyester Thermoplastic | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Cantilever | 18 | 1 | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | 0.128 " | 3.25 mm | |||
EDAC Inc. | Single | Copper Alloy | 0.125 in | 3.18 mm | Gold | Wire Wrap | Non Specified - Single Edge | 1 | 10 Áin | 0.25 Ám | Female | Through Hole | Polyester Thermoplastic | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Cantilever | 18 | 1 | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | 0.156 in | 3.96 mm | |||
EDAC Inc. | Single | Copper Alloy | 0.125 in | 3.18 mm | Gold | Solder Wire Wrap | Non Specified - Single Edge | 1 | 10 Áin | 0.25 Ám | Female | Through Hole Right Angle | Polyester Thermoplastic | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Cantilever | 18 | 1 | Side Mount Opening Unthreaded | -40 °C | 105 ░C | 3.25 mm | 0.128 in | |||
EDAC Inc. | Dual | Copper Alloy | 0.125 in | 3.18 mm | Gold | Solder | Non Specified - Dual Edge | 2 | 10 Áin | 0.25 Ám | Female | Through Hole | Polyester Thermoplastic | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Cantilever | 9 | 2 | Floating Bobbin Flush Mount | -40 °C | 105 ░C | 0.116 in | 2.95 mm | |||
EDAC Inc. | Dual | Copper Alloy | 0.125 in | 3.18 mm | Gold | Solder Eyelet(s) | Non Specified - Dual Edge | 2 | 10 Áin | 0.25 Ám | Female | Through Hole | Polyester Thermoplastic | 18 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Cantilever | 9 | 2 | -40 °C | 105 ░C | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 9.59 | |
Description
General part information
346-018 Series
18 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
