64984-501

Active

Laird Thermal Systems, Inc.

CP2-127-06-L2-RT-W4.5

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

CP2-127-06-L2-RT-W4.5

Technical Specifications

Parameters and characteristics for this part

Specification	64984-501

Current - Max [Max]	14.3 A
Delta Tmax @ Th	67 °C
Features	Sealed - Silicone RTV, Lead Wires
Height [z]	4.57 mm
Number of Stages	1
Resistance	940 mOhms
Size / Dimension	Square
Size / Dimension [x]	62 mm
Size / Dimension [y]	62 mm
Voltage - Max [Max]	14.5 V

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	Delta Tmax @ Th	Features	Number of Stages	Current - Max [Max]	Height [z]	Resistance	Voltage - Max [Max]
Laird Thermal Systems, Inc. 64984-503	62 mm	62 mm	Square	67 °C	Lapped Lead Wires	1	14.3 A	4.57 mm	940 mOhms	14.5 V
Laird Thermal Systems, Inc. 64984-501	62 mm	62 mm	Square	67 °C	Lead Wires Sealed - Silicone RTV	1	14.3 A	4.57 mm	940 mOhms	14.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 68.54

General part information

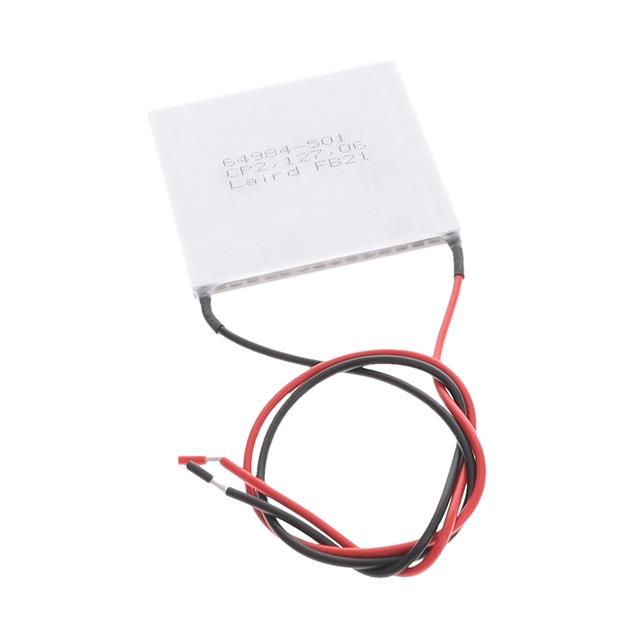

Peltier Module 122.3W @ 25°C 14.3 A

Technical documentation and resources
