IL-G-4P-S3T2-SA-1
ActiveJAE Electronics

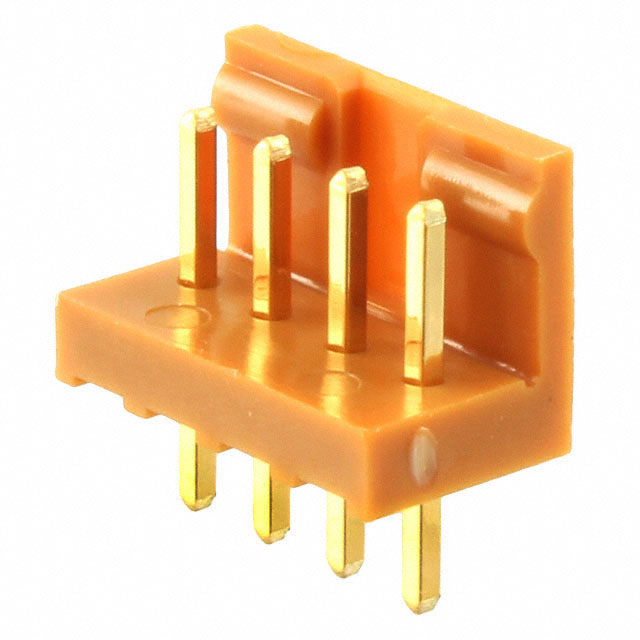

CONN HEADER VERT 4POS 2.5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IL-G-4P-S3T2-SA-1
ActiveJAE Electronics
CONN HEADER VERT 4POS 2.5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IL-G-4P-S3T2-SA-1 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Length - Mating | 4 mm |
| Contact Length - Mating | 0.157 in |
| Contact Length - Post | 3.5 mm |
| Contact Length - Post | 0.138 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Friction Lock |
| Insulation Color | Brown |
| Insulation Height | 0.28 in |
| Insulation Height | 7.1 mm |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mated Stacking Heights | 10 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Contact Length | 0.378 in |
| Overall Contact Length | 9.6 mm |
| Pitch - Mating | 2.5 mm |
| Pitch - Mating | 0.098 in |
| Shrouding | Shrouded - 1 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
IL-G-4P Series
| Part | Number of Positions Loaded | Insulation Height | Insulation Height | Current Rating (Amps) | Contact Length - Mating | Contact Length - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Shrouding | Termination | Pitch - Mating | Pitch - Mating | Insulation Material | Contact Type | Fastening Type | Connector Type | Contact Finish - Post | Mated Stacking Heights | Style | Contact Finish - Mating | Number of Positions | Material Flammability Rating | Number of Rows | Insulation Color | Contact Shape | Mounting Type | Contact Length - Post | Contact Length - Post | Contact Material | Overall Contact Length | Overall Contact Length | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | All | 0.28 in | 7.1 mm | 3 A | 4 mm | 0.157 in | 85 °C | -40 °C | Shrouded - 1 Wall | Solder | 2.5 mm | 0.098 in | Polyamide (PA66) Nylon 6/6 | Male Pin | Friction Lock | Header | Gold | 10 mm | Board to Cable/Wire | Gold | 4 | UL94 V-0 | 1 | Brown | Square | Through Hole | 3.5 mm | 0.138 in | Brass | 0.378 in | 9.6 mm | ||
JAE Electronics | All | 0.236 in | 6 mm | 3 A | 4 mm | 0.157 in | 85 °C | -40 °C | Shrouded - 1 Wall | Solder | 2.5 mm | 0.098 in | Polyamide (PA66) Nylon 6/6 | Male Pin | Friction Lock | Header | Tin | Board to Cable/Wire | 4 | UL94 V-0 | 1 | Brown | Square | Through Hole Right Angle | 3.5 mm | 0.138 in | Brass | ||||||
JAE Electronics | 3 A | 85 °C | -40 °C | Shrouded - 1 Wall | 2.5 mm | 0.098 in | Polyamide (PA66) Nylon 6/6 | Friction Lock | Header | Board to Cable/Wire | 4 | UL94 V-0 | 1 | Square | Through Hole Right Angle | Brass | |||||||||||||||||
JAE Electronics | All | 0.236 in | 6 mm | 3 A | 4 mm | 0.157 in | 85 °C | -40 °C | Shrouded - 1 Wall | Solder | 2.5 mm | 0.098 in | Polyamide (PA66) Nylon 6/6 | Male Pin | Friction Lock | Header | Board to Cable/Wire | Gold | 4 | UL94 V-0 | 1 | Brown | Square | Through Hole Right Angle | 3.5 mm | 0.138 in | Brass | 0.099 µm | 3.9 µin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.45 | |
| 10 | $ 0.40 | |||
| 100 | $ 0.33 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.25 | |||
Description
General part information
IL-G-4P Series
Connector Header Through Hole 4 position 0.098" (2.50mm)
