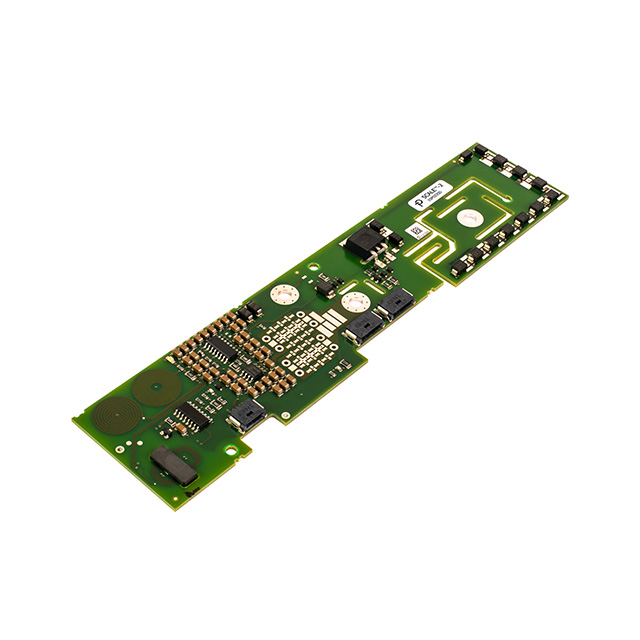

1SP0335D2S1-45

Active

Power Integrations

IC GATE DRVR HI/LOW SIDE MODULE

Search across all available documentation for this part.

Active

Power Integrations

IC GATE DRVR HI/LOW SIDE MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	1SP0335D2S1-45

Channel Type	Single
Current - Peak Output (Source, Sink) [custom]	35 A
Current - Peak Output (Source, Sink) [custom]	35 A
Driven Configuration	High-Side, Low-Side
Gate Type	IGBT
High Side Voltage - Max (Bootstrap) [Max]	4500 V
Mounting Type	Surface Mount
Number of Drivers	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Rise / Fall Time (Typ) [custom]	30 ns
Rise / Fall Time (Typ) [custom]	9 ns
Supplier Device Package	Module
Voltage - Supply [Max]	26.5 V
Voltage - Supply [Min]	23.5 V

Part	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Driven Configuration	High Side Voltage - Max (Bootstrap) [Max]	Package / Case	Channel Type	Number of Drivers	Supplier Device Package	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Gate Type
Power Integrations 1SP0335V2M1-MBN750H65E2	35 A	35 A	85 °C	-40 °C	High-Side Low-Side	6500 V	Module	Single	1	Module	Chassis Mount	26.5 V	23.5 V	30 ns	9 ns	IGBT
Power Integrations 1SP0335V2M1-45	35 A	35 A	85 °C	-40 °C	High-Side Low-Side	4500 V	Module	Single	1	Module	Surface Mount	26.5 V	23.5 V	30 ns	9 ns	IGBT
Power Integrations 1SP0335D2S1-45	35 A	35 A	85 °C	-40 °C	High-Side Low-Side	4500 V	Module	Single	1	Module	Surface Mount	26.5 V	23.5 V	30 ns	9 ns	IGBT
Power Integrations 1SP0335V2M1C-FZ600R65KF2	35 A	35 A	85 °C	-40 °C	High-Side Low-Side	6500 V	Module	Single	1	Module	Chassis Mount	26.5 V	23.5 V	30 ns	9 ns	IGBT
Power Integrations 1SP0335V2M1C-CM900HG-90H	35 A	35 A	85 °C	-40 °C	High-Side Low-Side	4500 V	Module	Single	1	Module	Chassis Mount	26.5 V	23.5 V	30 ns	9 ns	IGBT
Power Integrations 1SP0335D2S1-65	35 A	35 A	85 °C	-40 °C	High-Side Low-Side	6500 V	Module	Single	1	Module	Surface Mount	26.5 V	23.5 V	30 ns	9 ns	IGBT
Power Integrations 1SP0335V2M1-CM600HG-130H	35 A	35 A	85 °C	-40 °C	High-Side Low-Side	6500 V	Module	Single	1	Module	Chassis Mount	26.5 V	23.5 V	30 ns	9 ns	IGBT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

High-Side or Low-Side Gate Driver IC Module
