EXN-23358-BKP

Active

BUD INDUSTRIES

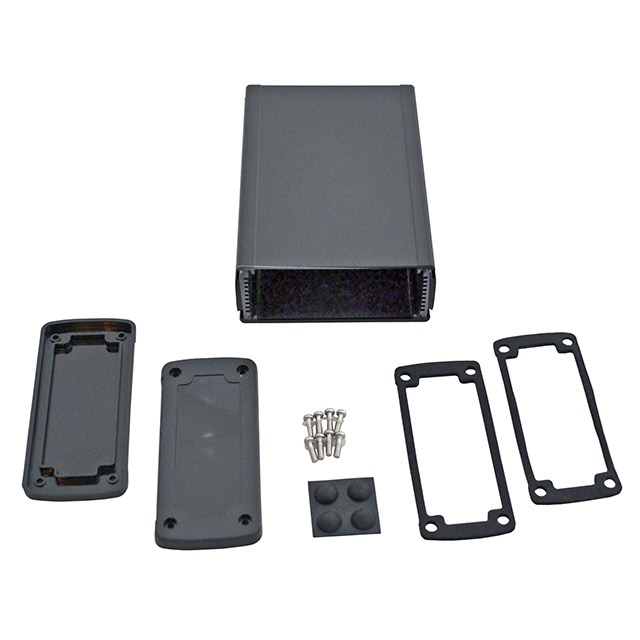

BOX ALUM BLACK 6.65"L X 4.53"W

Search across all available documentation for this part.

Active

BUD INDUSTRIES

BOX ALUM BLACK 6.65"L X 4.53"W

Technical Specifications

Parameters and characteristics for this part

Specification	EXN-23358-BKP

Area (L x W)	194 cm˛
Area (L x W)	30 in˛
Color	Black
Container Type	Box
Design	End Panel(s)
Features	Card Guides, Sealing Gaskets
Height [z]	51.6 mm
Height [z]	2.031 in
Material	Metal, Polycarbonate Panels, Aluminum with Plastic
Material Flammability Rating	UL94 V-0
Ratings	IP66
Size / Dimension [x]	169 mm
Size / Dimension [x]	6.654 "
Size / Dimension [y]	115.1 mm
Size / Dimension [y]	4.531 in
Thickness	0.091 in
Thickness	2.3 mm
Weight	0.89 lb
Weight	403.7 g

Part	Ratings	Area (L x W)	Area (L x W)	Weight	Weight	Material Flammability Rating	Thickness	Thickness	Material	Height [z]	Height [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Design	Container Type	Features	Color
BUD INDUSTRIES EXN-23358-BKP	IP66	194 cm˛	30 in˛	0.89 lb	403.7 g	UL94 V-0	0.091 in	2.3 mm	Aluminum with Plastic Metal Polycarbonate Panels	51.6 mm	2.031 in	169 mm	115.1 mm	4.531 in	6.654 "	End Panel(s)	Box	Card Guides Sealing Gaskets	Black
BUD INDUSTRIES EXN-23358-BK	IP66	194 cm˛	30 in˛	1 lbs	453.59 g		0.091 in	2.3 mm	Aluminum Metal	51.6 mm	2.031 in	169 mm	115.1 mm	4.531 in	6.654 "	End Panel(s)	Box	Card Guides Sealing Gaskets	Black
BUD INDUSTRIES EXN-23358-GD	IP66	194 cm˛	30 in˛	1 lbs	453.59 g		0.091 in	2.3 mm	Aluminum Metal	51.6 mm	2.031 in	169 mm	115.1 mm	4.531 in	6.654 "	End Panel(s)	Box	Card Guides Sealing Gaskets	Black Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Metal, Aluminum with Plastic, Polycarbonate Panels Black End Panel(s) 6.654" L x 4.531" W (169.00mm x 115.10mm) X 2.031" (51.60mm)
