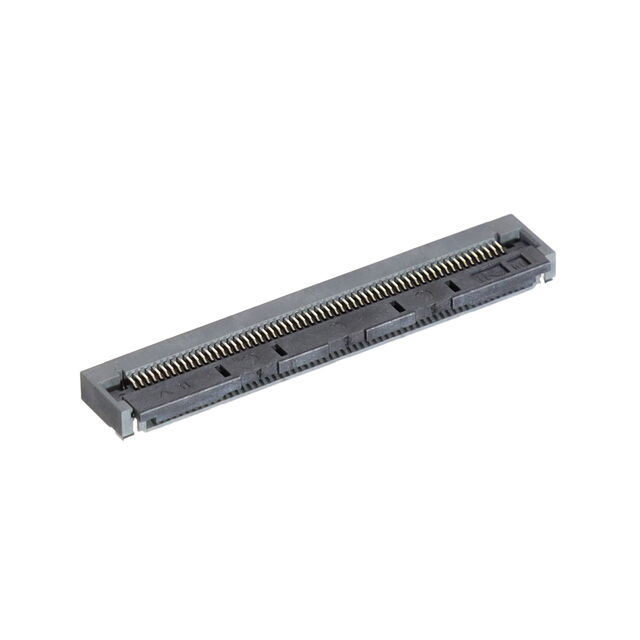

FH28K-60S-0.5SH

Active

Hirose Electric USA, Inc.

CONN FFC BOTTOM 60POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FH28K-60S-0.5SH

Active

Hirose Electric USA, Inc.

CONN FFC BOTTOM 60POS 0.5MM R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FH28K-60S-0.5SH

Actuator Color	Black
Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Tabbed
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Finish Thickness	1.25 Áin
Contact Finish Thickness	0.03 Ám
Contact Material	Copper Alloy
Current Rating (Amps)	0.5 A
Features	Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	0.1 in
Height Above Board	2.54 mm
Housing Color	Gray
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	60
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

FH28 Series

FFC & FPC Connectors 40P SMT HORIZ ZIF AU 2.5MM HT .5MM PITCH

Part	Features	Operating Temperature [Min]	Operating Temperature [Max]	Connector/Contact Type	Material Flammability Rating	Locking Feature	Housing Color	Housing Material	Pitch [x]	Pitch [x]	Actuator Color	Actuator Material	Contact Material	Contact Finish	Mounting Type	Cable End Type	FFC, FCB Thickness	Flat Flex Type	Height Above Board	Height Above Board	Termination	Number of Positions	Mating Cycles	Current Rating (Amps)	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. FH28E-50S-0.5SH(05)	Solder Retention Zero Insertion Force (ZIF)	-40 °C	105 ░C	Contacts Bottom	UL94 V-0	Rotary Lock	Gray	Liquid Crystal Polymer (LCP) Halogen Free	0.5 mm	0.02 in	Black	Liquid Crystal Polymer (LCP) Halogen Free	Phosphor Bronze	Gold	Surface Mount Right Angle	Tabbed	0.3 mm	FFC FPC	0.1 in	2.54 mm	Solder	50
Hirose Electric USA, Inc. FH28E-50S-0.5SH(98)	Solder Retention Zero Insertion Force (ZIF)	-40 °C	105 ░C	Contacts Bottom	UL94 V-0	Rotary Lock	Gray	Liquid Crystal Polymer (LCP) Halogen Free	0.5 mm	0.02 in	Black	Liquid Crystal Polymer (LCP) Halogen Free	Phosphor Bronze	Gold	Surface Mount Right Angle	Tabbed	0.3 mm	FFC FPC	0.1 in	2.54 mm	Solder	50
Hirose Electric USA, Inc. FH28-10S-0.5SH(05)	Solder Retention Zero Insertion Force (ZIF)	-40 °C	105 ░C	Contacts Bottom	UL94 V-0	Rotary Lock	Gray	Liquid Crystal Polymer (LCP) Halogen Free	0.5 mm	0.02 in	Black	Liquid Crystal Polymer (LCP) Halogen Free	Phosphor Bronze	Gold	Surface Mount Right Angle	Tabbed	0.3 mm	FFC FPC	0.1 in	2.54 mm	Solder	10	20	0.5 A	50 V
Hirose Electric USA, Inc. FH28E-40S-0.5SH(07)	Solder Retention Zero Insertion Force (ZIF)	-40 °C	105 ░C	Contacts Bottom	UL94 V-0	Rotary Lock	Gray	Liquid Crystal Polymer (LCP) Halogen Free	0.5 mm	0.02 in	Black	Liquid Crystal Polymer (LCP) Halogen Free	Phosphor Bronze	Gold	Surface Mount Right Angle	Tabbed	0.3 mm	FFC FPC	0.1 in	2.54 mm	Solder	40
Hirose Electric USA, Inc. FH28D-74S-0.5SH(98)	Solder Retention Zero Insertion Force (ZIF)	-40 °C	105 ░C	Contacts Bottom	UL94 V-0	Rotary Lock	Gray	Liquid Crystal Polymer (LCP) Halogen Free	0.5 mm	0.02 in	Black	Liquid Crystal Polymer (LCP) Halogen Free	Phosphor Bronze	Gold	Surface Mount Right Angle	Tabbed	0.3 mm	FFC FPC	0.1 in	2.54 mm	Solder	74	20	0.5 A	50 V
Hirose Electric USA, Inc. FH28D-50S-0.5SH(05)	Solder Retention Zero Insertion Force (ZIF)	-40 °C	105 ░C	Contacts Bottom	UL94 V-0	Rotary Lock	Gray	Liquid Crystal Polymer (LCP) Halogen Free	0.5 mm	0.02 in	Black	Liquid Crystal Polymer (LCP) Halogen Free	Phosphor Bronze	Gold	Surface Mount Right Angle	Tabbed	0.3 mm	FFC FPC	0.1 in	2.54 mm	Solder	50	20	0.5 A	50 V
Hirose Electric USA, Inc. FH28D-68S-0.5SH(39)	Solder Retention Zero Insertion Force (ZIF)	-40 °C	105 ░C	Contacts Bottom		Rotary Lock			0.5 mm	0.02 in			Phosphor Bronze		Surface Mount Right Angle	Tabbed	0.3 mm	FFC FPC	0.1 in	2.54 mm	Solder	68		0.5 A	50 V
Hirose Electric USA, Inc. FH28K-60S-0.5SH	Solder Retention	-40 °C	125 °C	Contacts Bottom	UL94 V-0	Flip Lock	Gray	Liquid Crystal Polymer (LCP)	0.5 mm	0.02 in	Black	Liquid Crystal Polymer (LCP)	Copper Alloy	Gold	Surface Mount Right Angle	Tabbed	0.3 mm	FFC FPC	0.1 in	2.54 mm	Solder	60	20	0.5 A	50 V	1.25 Áin	0.03 Ám
Hirose Electric USA, Inc. FH28-40S-0.5SH(11)	Solder Retention Zero Insertion Force (ZIF)	-40 °C	105 ░C	Contacts Bottom	UL94 V-0	Rotary Lock	Gray	Liquid Crystal Polymer (LCP)	0.5 mm	0.02 in	Black	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Gold	Surface Mount Right Angle	Tabbed	0.3 mm	FFC FPC	0.1 in	2.54 mm	Solder	40	20	0.5 A	50 V
Hirose Electric USA, Inc. FH28BH-80S-0.5SH(10)									0.5 mm	0.02 in					Surface Mount Right Angle						Solder	80
