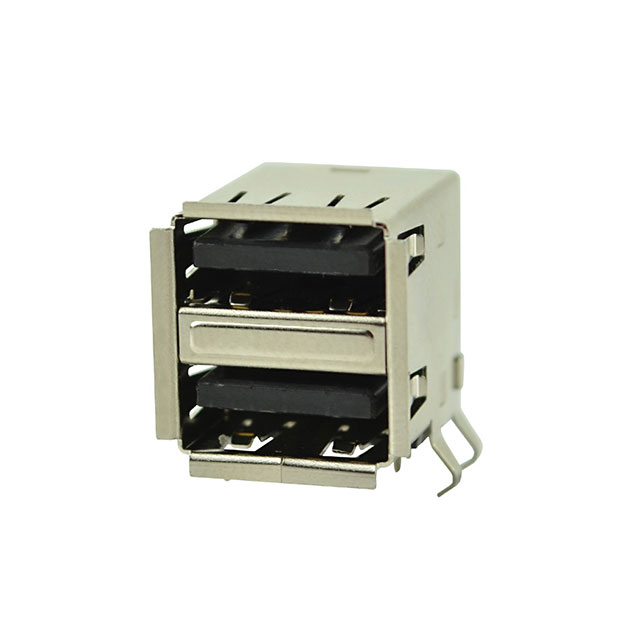

UJ2-ADH-1-TH

Active

CUI Devices

CONN RCPT USB2.0 TYPEA STACK R/A

Search across all available documentation for this part.

Active

CUI Devices

CONN RCPT USB2.0 TYPEA STACK R/A

Technical Specifications

Parameters and characteristics for this part

Specification	UJ2-ADH-1-TH

Connector Type	USB-A (USB TYPE-A), Stacked
Contact Finish	Gold
Features	3 µ"
Features	Board Lock
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle
Number of Contacts	8
Number of Ports	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Shell/Shielding Material	Brass
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 VAC

Part	Gender	Number of Ports	Mounting Feature	Specifications	Mounting Type	Material Flammability Rating	Voltage - Rated	Features	Features	Number of Contacts	Contact Finish	Mating Cycles	Connector Type	Termination	Insulation Color	Shell/Shielding Material	Operating Temperature [Max]	Operating Temperature [Min]	Shielding
CUI Devices UJ2-ADH-1-TH	Receptacle	2	Horizontal	USB 2.0	Through Hole Right Angle	UL94 V-0	30 VAC	3 µ"	Board Lock	8	Gold	1500	Stacked USB-A (USB TYPE-A)	Solder	Black	Brass	85 °C	-20 C	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A), Stacked USB 2.0 Receptacle Connector 8 Position Through Hole, Right Angle
