456E-117

Obsolete

Amphenol ICC (Commercial Products)

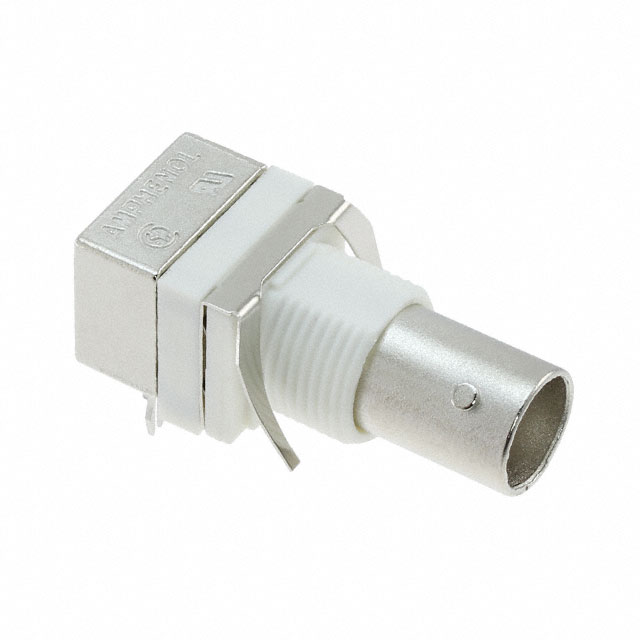

CONN BNC JACK R/A 50OHM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

456E-117

Obsolete

Amphenol ICC (Commercial Products)

CONN BNC JACK R/A 50OHM PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	456E-117

Body Finish	Nickel
Body Material	Zinc Die Cast
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Fastening Type	Bayonet Lock
Features	Board Lock, Filter
Housing Color	Silver
Impedance	50 Ohms
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Shield Termination	Solder
Voltage Rating	200 V

456 Series

Part	Fastening Type	Contact Termination	Number of Ports	Impedance	Body Finish	Mounting Type	Body Material	Connector Type	Mounting Feature	Features	Center Contact Material	Housing Color	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Shield Termination	Connector Style	Conversion Type	Dielectric Material	Adapter Series	Convert To (Adapter End)	Mating Cycles	Adapter Type	Style	Center Gender	Includes	Convert From (Adapter End)	Cable Group
Amphenol ICC (Commercial Products) 456-717S
Amphenol ICC (Commercial Products) 456E-117	Bayonet Lock	Solder	1	50 Ohms	Nickel	Panel Mount Right Angle Through Hole	Zinc Die Cast	Female Socket Jack	Bulkhead - Front Side Nut	Board Lock Filter	Phosphor Bronze	Silver	Gold	85 °C	-20 C	200 V	Solder	BNC
Amphenol ICC (Commercial Products) 456-917	Bayonet Lock			75 Ohms	Nickel				Bulkhead	Filter	Phosphor Bronze		Gold						Same Series	Thermoplastic	BNC to BNC	BNC Jack Female Socket	500	Jack to Jack	Straight	Female to Female	1 Connector 1 Lockwasher 1 Nut	BNC Jack Female Socket
Amphenol ICC (Commercial Products) 456-117F
Amphenol ICC (Commercial Products) 456-218G	Bayonet Lock	Crimp	1	75 Ohms	Nickel			Female Socket Jack	Bulkhead - Front Side Nut			Silver	Gold	85 °C	-20 C	200 V	Crimp	BNC		Thermoplastic									RG-179
Amphenol ICC (Commercial Products) 456E717	Bayonet Lock	Solder	1	75 Ohms	Nickel	Panel Mount Right Angle Through Hole	Zinc Die Cast	Female Socket Jack	Bulkhead - Front Side Nut	Board Lock Filter	Phosphor Bronze	Silver	Gold	85 °C	-20 C	200 V	Solder	BNC		Thermoplastic
Amphenol ICC (Commercial Products) 456E-107TG	Bayonet Lock	Solder Cup	1	75 Ohms	Nickel		Brass	Female Socket Jack	Bulkhead - Rear Side Nut	Filter	Phosphor Bronze	Silver	Gold	85 °C	-20 C	200 V	Solder Tag	BNC		Polytetrafluoroethylene (PTFE)
Amphenol ICC (Commercial Products) 456E915	Bayonet Lock			50 Ohms	Nickel		Zinc Die Cast		Bulkhead	Filter	Phosphor Bronze		Gold	85 °C	-20 C				Same Series		BNC to BNC	BNC Jack Female Socket		Jack to Jack	Straight	Female to Female	1 Connector 1 Lockwasher 1 Nut	BNC Jack Female Socket
Amphenol ICC (Commercial Products) 456-117NF	Bayonet Lock	Solder	1	50 Ohms	Nickel	Panel Mount Right Angle Through Hole	Zinc Die Cast	Female Socket Jack	Bulkhead - Front Side Nut		Phosphor Bronze	Silver	Gold	85 °C	-20 C	200 V	Solder	BNC		Polyester			500
Amphenol ICC (Commercial Products) 456-107-BNF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

456 Series

BNC Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder

Documents

Technical documentation and resources
