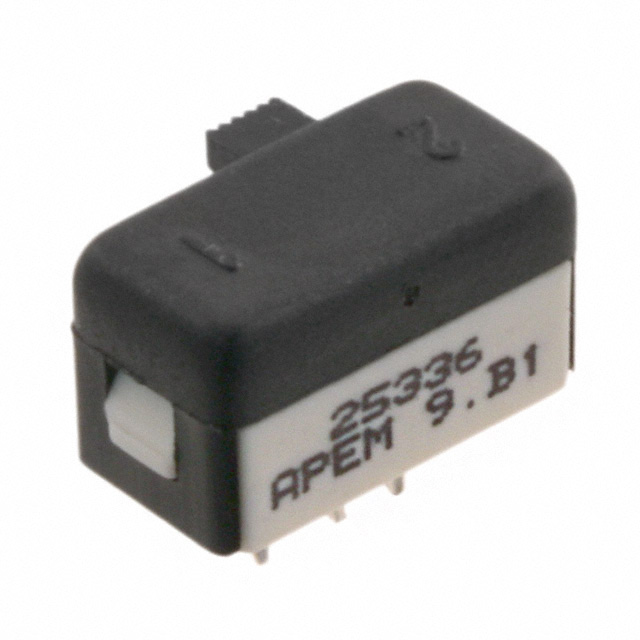

25336NA

Active

APEM

SWITCH SLIDE SPDT 4A 125V

Search across all available documentation for this part.

Active

APEM

SWITCH SLIDE SPDT 4A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	25336NA

Actuator Length [x]	2.3 mm
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Actuator Type	Standard
Circuit	SPDT
Contact Material	Silver (Ag)
Contact Timing	Not Specified
Current Rating (Amps)	1 A, 4 A
Electrical Life	10000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	20000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Switch Function	On-On
Switch Travel	4 mm
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Contact Material	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Mounting Type	Actuator Type	Actuator Length [x]	Voltage Rating - DC	Current Rating (Amps)	Electrical Life	Mechanical Life	Circuit	Voltage Rating - AC	Features	Contact Timing	Switch Travel	Actuator Material	Contact Finish
APEM 25336NA	Silver (Ag)	PC Pin	85 °C	-40 °C	On-On	Through Hole Right Angle	Standard	2.3 mm	30 V	1 A 4 A	10000 Cycles	20000 Cycles	SPDT	125 V	Epoxy Sealed Terminals	Not Specified	4 mm	Glass Filled Nylon Polyamide (PA)
APEM 25336NLD6	Brass	PC Pin	85 °C	-40 °C	On-On	Through Hole Right Angle	Standard	6 mm	30 V	100 mA	10000 Cycles	20000 Cycles	SPDT		Epoxy Sealed Terminals	Not Specified	4 mm	Glass Filled Nylon Polyamide (PA)	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Slide Switch SPDT Through Hole, Right Angle
