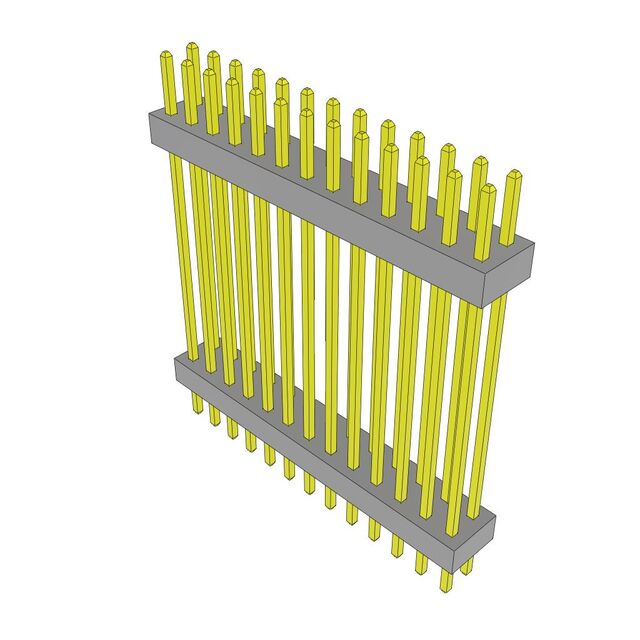

TW-13-12-L-D-830-125

Active

Samtec Inc.

CONN BOARD STACKER HDR 26 POS 2MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTW Datasheet Datasheet +1

TW-13-12-L-D-830-125

Active

Samtec Inc.

CONN BOARD STACKER HDR 26 POS 2MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

DocumentsTW Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TW-13-12-L-D-830-125

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	28.194 mm
Length - Overall Pin [x]	1.11 in
Length - Post (Mating) [x]	0.155 in
Length - Post (Mating) [x]	3.937 mm
Length - Stack Height [x]	21.082 mm
Length - Stack Height [x]	0.83 in
Length - Tail [custom]	0.125 in
Length - Tail [custom]	3.175 mm
Mounting Type	Through Hole
Number of Positions	26
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Termination	Solder

TW-13-12 Series

Part	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Row Spacing	Row Spacing	Termination	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Tail [x]	Length - Tail [x]	Pitch [x]	Pitch [x]	Number of Rows	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish - Post (Mating)	Color	Mounting Type	Number of Positions	Length - Tail [custom]	Length - Tail [custom]	Length - Stack Height [z]	Length - Stack Height [z]	Length - Tail	Length - Tail	Length - Tail [custom]	Length - Tail [custom]
Samtec Inc. TW-13-12-S-D-815-114	0.181 in	4.597 mm	2 mm	0.079 in	Solder	30 µin	0.76 µm	28.194 mm	1.11 in	2.896 mm	0.114 "	0.079 in	2 mm	2	20.7 mm	0.815 in	Gold	Black	Through Hole	26
Samtec Inc. TW-13-12-L-D-830-125	0.155 in	3.937 mm	2 mm	0.079 in	Solder	10 Áin	0.25 Ám	28.194 mm	1.11 in			0.079 in	2 mm	2	21.082 mm	0.83 in	Gold	Black	Through Hole	26	0.125 in	3.175 mm
Samtec Inc. TW-13-12-L-S-935-100	0.075 in	1.905 mm			Solder	10 Áin	0.25 Ám	28.194 mm	1.11 in	2.54 mm	0.1 "	0.079 in	2 mm	1			Gold	Black	Through Hole	13			0.935 in	23.749 mm
Samtec Inc. TW-13-12-T-D-734-178	0.198 in	5.029 mm	2 mm	0.079 in	Solder			28.194 mm	1.11 in	4.521 mm	0.178 in	0.079 in	2 mm	2			Tin	Black	Through Hole	26
Samtec Inc. TW-13-12-S-D-700-145	0.265 in	6.731 mm	2 mm	0.079 in	Solder	30 µin	0.76 µm	28.194 mm	1.11 in			0.079 in	2 mm	2	17.78 mm	0.7 in	Gold	Black	Through Hole	26					0.145 in	3.683 mm
Samtec Inc. TW-13-12-T-S-950-080					Solder			28.194 mm	1.11 in	2.032 mm	0.08 in	0.079 in	2 mm	1	24.13 mm	0.95 in	Tin	Black	Through Hole	13
Samtec Inc. TW-13-12-S-D-863-090-026	0.157 in	3.988 mm	2 mm	0.079 in	Solder	30 µin	0.76 µm	28.194 mm	1.11 in	2.286 mm	0.09 in	0.079 in	2 mm	2	21.92 mm	0.863 in	Gold	Black	Through Hole	26
Samtec Inc. TW-13-12-G-D-895-105	0.11 in	2.794 mm	2 mm	0.079 in	Solder	20 Áin	0.51 Ám	28.194 mm	1.11 in	2.667 mm	0.105 in	0.079 in	2 mm	2	22.733 mm	0.895 in	Gold	Black	Through Hole	26
Samtec Inc. TW-13-12-S-D-725-150	0.235 in	5.969 mm	2 mm	0.079 in	Solder	30 µin	0.76 µm	28.194 mm	1.11 in			0.079 in	2 mm	2	18.415 mm	0.725 in	Gold	Black	Through Hole	26							0.15 in	3.81 mm
Samtec Inc. TW-13-12-L-D-760-150	0.2 in	5.08 mm	2 mm	0.079 in	Solder	10 Áin	0.25 Ám	28.194 mm	1.11 in			0.079 in	2 mm	2			Gold	Black	Through Hole	26							0.15 in	3.81 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 4.34
		25	$ 4.06
		50	$ 3.73
		100	$ 3.39
Digikey	Bulk	1	$ 4.99

Description

General part information

TW-13-12 Series

26 Position Header Spacer Connector 0.079" (2.00mm) Gold Through Hole
