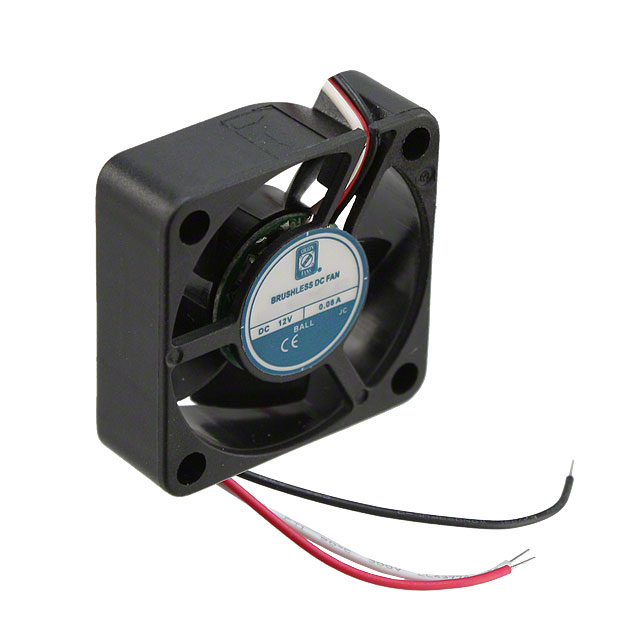

OD3010-05MSS01A

Active

Orion Fans

FAN AXIAL 30X10.2MM 5VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

OD3010-05MSS01A

Active

Orion Fans

FAN AXIAL 30X10.2MM 5VDC WIRE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD3010-05MSS01A

Approval Agency	CE, cURus
Bearing Type	Sealed Sleeve
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Size / Dimension [x]	30 mm
Size / Dimension [z]	30 mm
Termination	3 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	5 VDC
Voltage Range [Min]	3.5 VDC
Width [x]	10.2 mm

OD3010 Series

Part	Bearing Type	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Noise	Termination	Fan Type	Material - Blade	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Current Rating (Amps)	Width [x]	Voltage - Rated	Material - Frame	RPM	Air Flow	Air Flow	Static Pressure	Static Pressure	Features
Orion Fans OD3010-05LB	Ball	30 mm	30 mm	cURus TUV	4.5 V	5.5 V	50000 Hrs	23.1 dB(A)	2 Wire Leads	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	-20 °C	-20 C	65 °C	65 °C	1.2 A	10.2 mm	5 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	8000 RPM	0.098 mł/min	3.5 CFM
Orion Fans OD3010-05MSS	Sealed Sleeve	30 mm	30 mm	CE cURus	3.5 VDC	5 VDC			2 Wire Leads	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced						10.2 mm	5 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced
Orion Fans OD3010-12MB10A	Ball	30 mm	30 mm	cURus TUV	11 VDC	13.8 VDC	50000 Hrs	28.4 dB(A)	4 Wire Leads	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	-20 °C	-20 C	65 °C	65 °C	0.09 A	10.2 mm	12 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	9000 RPM	0.112 m³/min	4 CFM	0.18 in H2O	45 Pa	PWM Control Speed Sensor (Tach)
Orion Fans OD3010-05HB01A	Ball	30 mm	30 mm	cURus TUV	4.5 V	5.5 V	50000 Hrs	30.2 dB(A)	3 Wire Leads	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	-20 °C	-20 C	65 °C	65 °C	0.21 A	10.2 mm	5 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	11000 RPM	0.14 mł/min	5 CFM	0.21 in H2O	52.3 Pa	Speed Sensor (Tach)
Orion Fans OD3010-12MB	Ball	30 mm	30 mm	cURus TUV	11 VDC	13.8 VDC	50000 Hrs	28.4 dB(A)	2 Wire Leads	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	-20 °C	-20 C	65 °C	65 °C	0.09 A	10.2 mm	12 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	9000 RPM	0.112 m³/min	4 CFM	0.18 in H2O	45 Pa
Orion Fans OD3010-05MSS01A	Sealed Sleeve	30 mm	30 mm	CE cURus	3.5 VDC	5 VDC			3 Wire Leads	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced						10.2 mm	5 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced						Speed Sensor (Tach)
Orion Fans OD3010-05MB01A	Ball	30 mm	30 mm	CE cURus	4.5 V	5.5 V	50000 Hrs	28.4 dB(A)	3 Wire Leads	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	-20 °C	-20 C	65 °C	65 °C	0.21 A	10.2 mm	5 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	9000 RPM	0.112 m³/min	4 CFM	0.18 in H2O	45 Pa	Speed Sensor (Tach)
Orion Fans OD3010-05LSS	Sealed Sleeve	30 mm	30 mm	cURus TUV	3.5 VDC	5 VDC			2 Wire Leads	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	-25 °C	-25 °C	65 °C	65 °C		10.2 mm	5 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced
Orion Fans OD3010-05MB	Ball	30 mm	30 mm	CE cURus	4.5 V	5.5 V	50000 Hrs	28.4 dB(A)	2 Wire Leads	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	-20 °C	-20 C	65 °C	65 °C	0.21 A	10.2 mm	5 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	9000 RPM	0.112 m³/min	4 CFM	0.18 in H2O	45 Pa
Orion Fans OD3010-12LSS	Sealed Sleeve	30 mm	30 mm	cURus TUV	8 VDC	17 VDC	30000 Hrs	25 dB(A)	2 Wire Leads	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	-10 °C	-10 °C	60 °C	60 °C	60 mA	10.2 mm	12 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	7000 RPM	0.098 mł/min	3.5 CFM	0.11 in H2O	27.4 Pa

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	520	$ 8.08

Description

General part information

OD3010 Series

Fan Tubeaxial 5VDC Square - 30mm L x 30mm H Sealed Sleeve 3 Wire Leads

Documents

Technical documentation and resources

No documents available
