5120.0203.0

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 QC

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 QC

Technical Specifications

Parameters and characteristics for this part

Specification	5120.0203.0

Accomodates a Fuse	False
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	4 A
Features	Shielded
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Features	Material Flammability Rating	Accomodates a Fuse	Connector Type	Termination	Termination	Termination	Approval Agency	Connector Style	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Ingress Protection
SCHURTER Inc. 5120.0203.0	Shielded	UL94 V-0		Male Blades Receptacle	0.25 in	6.3 mm	Quick Connect	CCC cULus ENEC	IEC 320-C14	4 A	250 VAC	IP40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

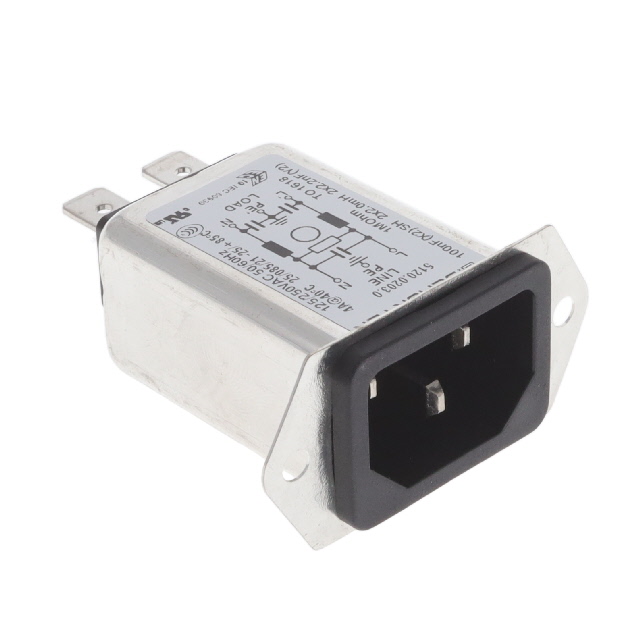

Power Entry Connector Receptacle, Male Blades IEC 320-C14
