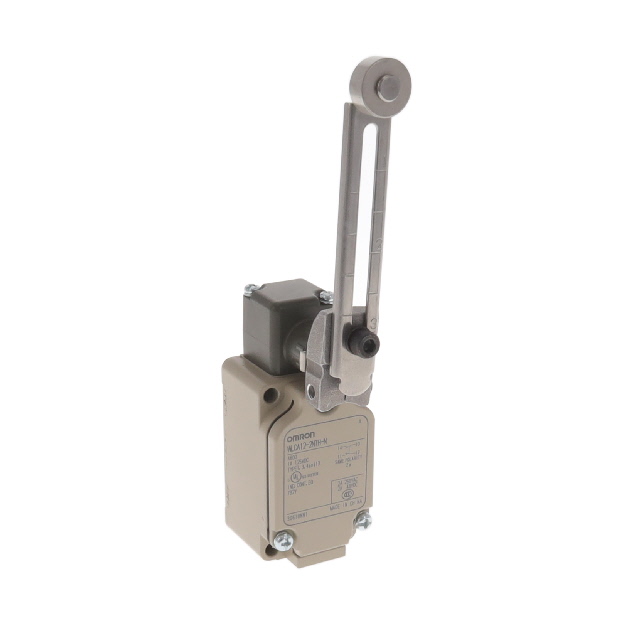

WLCA12-2NTH-N - WLCA12-2NTH-N

WLCA12-2NTH-N

Active
Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 10A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
WLCA12-2NTH-N - WLCA12-2NTH-N

WLCA12-2NTH-N

Active
Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 10A 125V

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationWLCA12-2NTH-N
Actuator TypeSide Rotary, Adjustable Roller
CircuitSPDT (DB/DM)
Differential Travel10 °
Electrical Life750000 Cycles
Ingress ProtectionIP67 - Dust Tight, Waterproof
Mechanical Life15000000 Cycles
Mounting TypeChassis Mount
Operating Force1360 gf
Operating Temperature [Max]120 °C
Operating Temperature [Min]5 °C
Overtravel70 °
Pretravel20 °
Release Force120 gf
Switch FunctionOn-Mom
Termination StyleScrew Terminal
Voltage Rating - AC125 V
Voltage Rating - DC30 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 148.18
10$ 139.71
25$ 131.24
50$ 122.77

Description

General part information

WLCA12 Series

Switch SPDT (DB/DM) Chassis Mount
