SNP60GHS0C2

Active

HELLERMANNTYTON

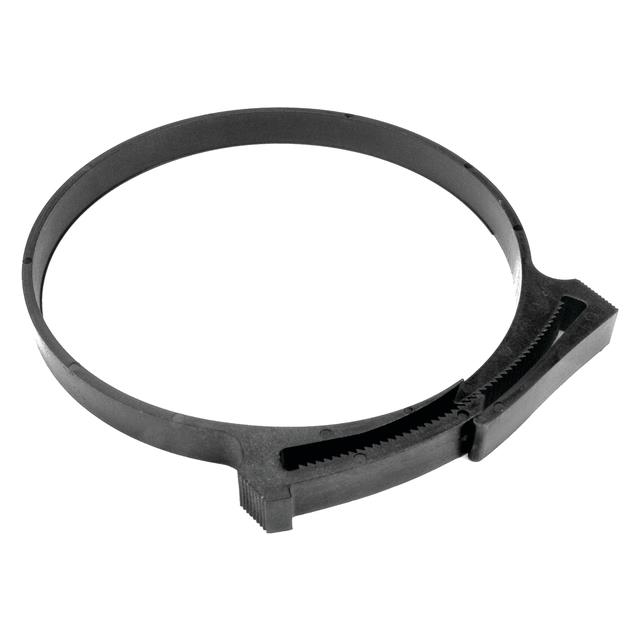

SNAPPER HOSE CLAMP, 2.31" 2.59" BUNDLE DIAMETER, PA66GF13, BLACK, 100/PKG

Search across all available documentation for this part.

Active

HELLERMANNTYTON

SNAPPER HOSE CLAMP, 2.31" 2.59" BUNDLE DIAMETER, PA66GF13, BLACK, 100/PKG

Technical Specifications

Parameters and characteristics for this part

Specification	SNP60GHS0C2

Color	Black
Features	Impact Resistant, Heat Stabilized
Length [Max] [x]	65.66 mm
Length [Max] [x]	2.585 "
Length [Min] [x]	37.16 mm
Length [Min] [x]	1.463 "
Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 HB
Material Thickness	0.068 in
Material Thickness	1.73 mm
Opening Size [Max]	67.03 mm, 2.639 in
Opening Size [Min]	58.62 mm, 2.308 in
Type	Clamp, Hose
Type Attributes	Push-Fit
Width [x]	7.47 mm
Width [x]	0.294 in

Part	Width [x]	Width [x]	Material Flammability Rating	Color	Opening Size [Min]	Opening Size [Max]	Features	Material Thickness	Material Thickness	Type	Material	Type Attributes	Length [Min] [x]	Length [Min] [x]	Length [Max] [x]	Length [Max] [x]
HELLERMANNTYTON SNP60GHS0C2	7.47 mm	0.294 in	UL94 HB	Black	2.308 in 58.62 mm	2.639 in 67.03 mm	Heat Stabilized Impact Resistant	0.068 in	1.73 mm	Clamp Hose	Polyamide (PA66) Nylon 6/6 Glass Filled	Push-Fit	37.16 mm	1.463 "	65.66 mm	2.585 "
