GRB203B801BRRN5
ActiveCW Industries

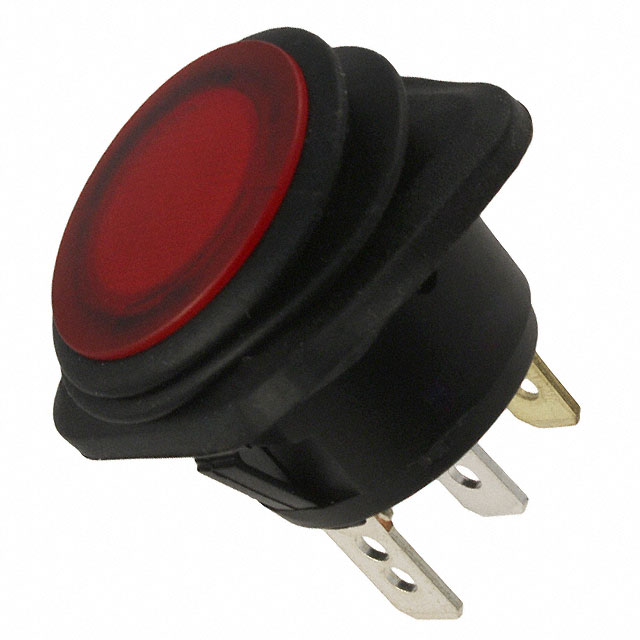

SWITCH ROCKER SPST 10A 250V
Deep-Dive with AI
Search across all available documentation for this part.
GRB203B801BRRN5
ActiveCW Industries
SWITCH ROCKER SPST 10A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GRB203B801BRRN5 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round - Illuminated |
| Circuit | SPST |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 10 A |
| Illumination Type, Color | Red, LED |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 24 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.19 | |
| 10 | $ 6.20 | |||
| 25 | $ 5.85 | |||
| 50 | $ 5.60 | |||
| 100 | $ 5.35 | |||
| 250 | $ 5.04 | |||
| 500 | $ 4.82 | |||
| 1000 | $ 4.61 | |||
Description
General part information
GRB203B Series
Rocker Switch SPST 10A (AC) 250 V Panel Mount, Snap-In
