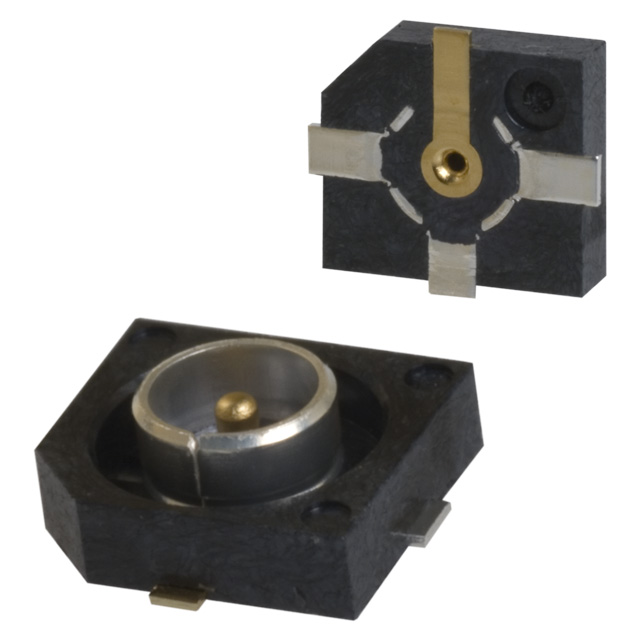

H.FL-R-SMT(01)
ActiveHirose Electric USA, Inc.
CONN H.FL RCPT STR 50 OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
H.FL-R-SMT(01)
ActiveHirose Electric USA, Inc.
CONN H.FL RCPT STR 50 OHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H.FL-R-SMT(01) |
|---|---|
| Body Finish | Silver |
| Body Material | Phosphor Bronze |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | H.FL |
| Connector Type | Male Pin, Receptacle |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 3 GHz |
| Housing Color | Black |
| Impedance | 50 Ohms |
| Mating Cycles | 50 |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.05 | |
| 10 | $ 1.78 | |||
| 25 | $ 1.70 | |||
| 50 | $ 1.67 | |||
| Digi-Reel® | 1 | $ 2.05 | ||
| 10 | $ 1.78 | |||
| 25 | $ 1.70 | |||
| 50 | $ 1.67 | |||
| Tape & Reel (TR) | 100 | $ 1.59 | ||
| 300 | $ 1.44 | |||
| 500 | $ 1.32 | |||
| 1000 | $ 1.14 | |||
| 2500 | $ 1.06 | |||
| 5000 | $ 1.01 | |||
| 10000 | $ 0.98 | |||
Description
General part information
H.FL-R Series
H.FL Connector Receptacle, Male Pin 50 Ohms Surface Mount Solder
Documents
Technical documentation and resources
No documents available
